Hamm

3520 HT P

Padfoot Compactor

Operating Weight
47,907 lb
Max Speed
8.1 mph
Drum Width
88 in
Gross Power
207.9 hp
All padfoot compactors

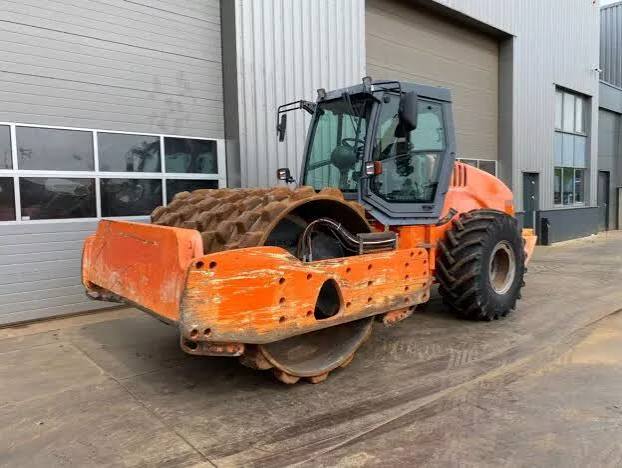

Hamm 3520 HT P Padfoot Compactor
1 / 5
Image 1 of 5
Image: product.global-ce.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight47,907 lb
Operating weight ROPS43,607 lb
Max Speed8.1 mph
Fuel Capacity76.7 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab44,093 lb

Engine

Engine specifications
Engine ModelTCD 2012 L06
Gross Power207.9 hp
Net Power207.9 hp
Number of Cylinders6
Engine MakeDEUTZ
Emissions levelEU Stage IIIA / EPA Tier 3

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab121 in
Wheelbase125 in
Overall Length245 in
Overall Width95 in
Turning Radius - Inside166 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Drum Width88 in
Vibration Frequency 127 vpm
Centrifugal Force - High74,412 lb
Drum Diameter70 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads150
Centrifugal Force - Low54,629 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 230 vpm
Drum thickness1 in
