Dynapac

CA610PD

Padfoot Compactor

Operating Weight
46,297 lb
Max Speed
6.9 mph
Drum Width
84 in
Gross Power
170.0 hp
All padfoot compactors

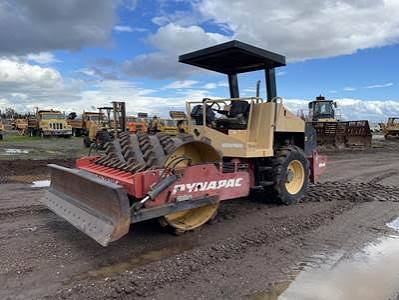

Dynapac CA610PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,297 lb
Operating weight ROPS45,636 lb
Max Speed6.9 mph
Fuel Capacity84.6 gal
Tire Size231 x 26

Engine

Engine specifications
Engine Model6BTAA5.9-C170
Power Measured @2,200 rpm
Gross Power170.0 hp
Engine MakeCummins

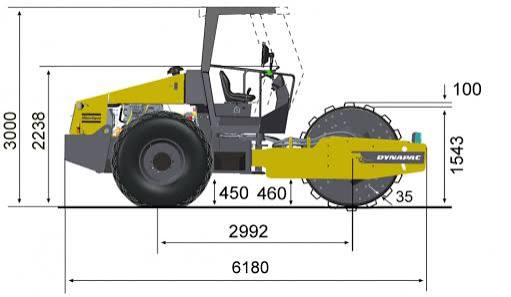

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of ROPS/FOPS89 in
Turning Radius - Inside126 in
Gradeability43.0 %
Height119 in
Turning Radius - Outside214 in
Curb clearance18 in
Overhang Front6 in
Overhang Rear5 in

Tires & Wheels

Tires & Wheels specifications
Tires231 x 26

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 129 vpm
Centrifugal Force - High71,264 lb
Nominal Amplitude - High0 in
Pad Height4 in
Centrifugal Force - Low51,931 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 231 vpm
Pad Surface Area23 in³
Vibration Frequency 230 vpm
