Hamm

3412P

Padfoot Compactor

Operating Weight
30,490 lb
Max Speed
6.9 mph
Gross Power
134.2 hp
All padfoot compactors

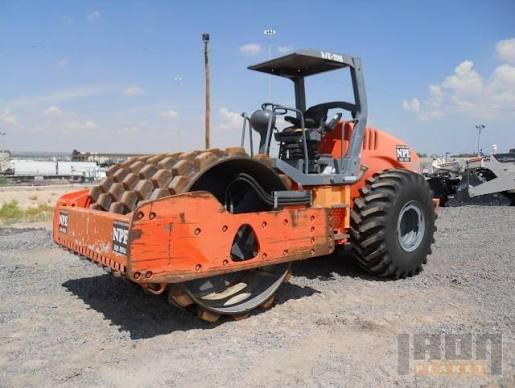

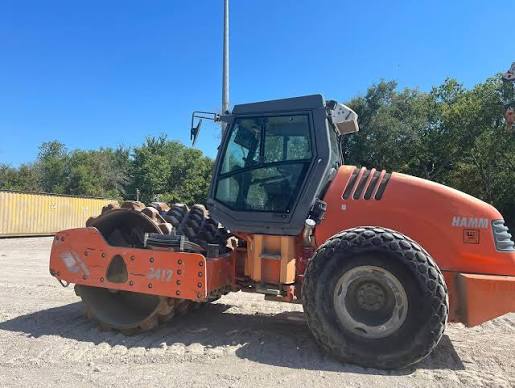

Hamm 3412P Padfoot Compactor
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,490 lb
Operating weight ROPS26,632 lb
Max Speed6.9 mph
Fuel Capacity76.7 gal
Oscillating angle10 °

Engine

Engine specifications
Engine ModelTCD 2012 L04
Displacement269 in³
Power Measured @2,200 rpm
Gross Power134.2 hp
Number of Cylinders4
Engine MakeDEUTZ
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab119 in
Wheelbase119 in
Overall Length226 in
Overall Width89 in
Width Over Tires89 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Vibration Frequency 130 vpm
Centrifugal Force - High57,551 lb
Drum Diameter66 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads140
Centrifugal Force - Low48,334 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 240 vpm
Pad Surface Area24 in³
Drum thickness1 in
