Hamm

3410P

Padfoot Compactor

Operating Weight
27,668 lb
Max Speed
6.9 mph
Drum Width
84 in
Gross Power
134.2 hp
All padfoot compactors

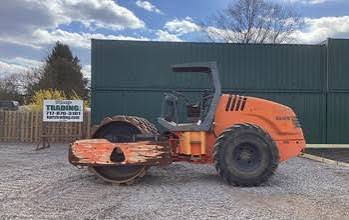

Hamm 3410P Padfoot Compactor
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,668 lb
Operating weight ROPS23,810 lb
Max Speed6.9 mph
Fuel Capacity76.7 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab24,295 lb

Engine

Engine specifications
Engine ModelTCD 2012 L04
Power Measured @2,300 rpm
Gross Power134.2 hp
Net Power134.2 hp
Number of Cylinders4
Engine MakeDEUTZ
Emissions levelEU Stage IIIA / EPA Tier 3

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab120 in
Wheelbase118 in
Overall Length224 in
Overall Width89 in
Turning Radius - Inside158 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 127 vpm
Centrifugal Force - High55,303 lb
Drum Diameter66 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads140
Centrifugal Force - Low32,373 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 237 vpm
Drum thickness1 in
