Dynapac
Hamm
3410P

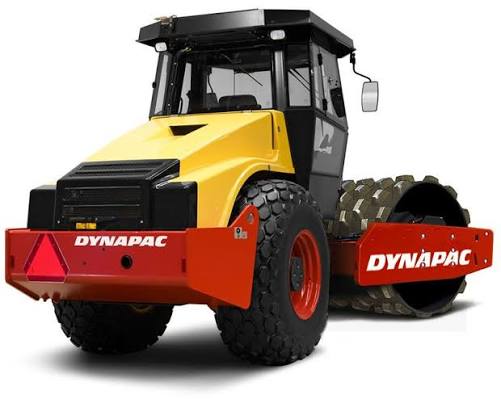

Padfoot Compactor
31 specifications
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 26,896 lb |
|---|---|
| Max Speed | 3.2 mph |
| Fuel Capacity | 66.1 gal |
Engine
| Engine Model | QSB 4.5 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 110.0 hp |
| Aspiration | water cooled turbo diesel with after cooler |
| Make | Cummins |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 118 in |
| Overall Width | 84 in |
| Width Over Tires | 84 in |
| Turning Radius - Inside | 9 in |
| Overall Length w/o Blade | 220 in |
Tires & Wheels
| Tires | 23.1x26 |
|---|
Drum
| Drum Width | 84 in |
|---|---|
| Vibration Frequency 1 | 33 vpm |
| Centrifugal Force - High | 67,443 lb |
| Drum Diameter | 60 in |
| Nominal Amplitude - High | 0 in |
| Pad Height | 4 in |
| Number of Pads | 130 |
| Centrifugal Force - Low | 32,822 lb |
| Nominal Amplitude - Low | 0 in |
| Pad Surface Area | 23 in³ |
| Frequency | 33 vpm |
