Dynapac
BOMAG
BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5
Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 26,676 lb |
|---|---|
| Operating weight ROPS | 23,876 lb |
| Max Speed | 6.9 mph |
| Fuel Capacity | 250.0 gal |
| Tire Size | 23.1 x 26 |
Engine
| Engine Model | 4R1040TA3 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 105.0 hp |
| Engine Make | Kirloskar |
| Engine Type | Water cooled turbo charged + Intercooler |

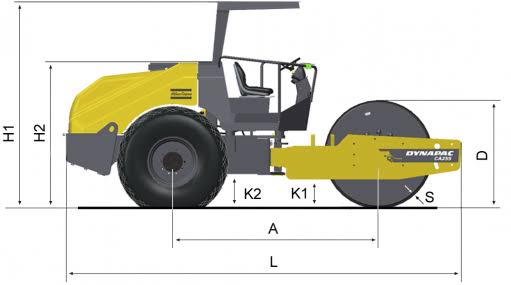

Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 113 in |
| Overall Length | 219 in |
| Height - Top of ROPS/FOPS | 118 in |
| Turning Radius - Inside | 122 in |
| Gradeability | 34.0 % |
| Height | 86 in |
| Turning Radius - Outside | 214 in |
| Curb clearance | 20 in |
| Overhang Rear | 6 in |
| Overhang Front | 6 in |
Drum
| Drum Width | 84 in |
|---|---|
| Drum Diameter | 60 in |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 55,303 lb |
| Static Linear Load | 14 lb-ft |
| Centrifugal Force - Low | 26,752 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |
