BOMAG
BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5
Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 26,676 lb |
|---|---|
| Operating weight ROPS | 26,235 lb |
| Max Speed | 6.3 mph |
| Fuel Capacity | 250.0 gal |
| Tire Size | 231 x 26 |
Engine
| Engine Model | 4BT 3.9 102C |
|---|---|
| Power Measured @ | 2,300 rpm |
| Gross Power | 102.0 hp |
| Engine Make | Cummins |
| Engine Type | Water cooled turbo charged + Intercooler |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 113 in |
| Overall Length | 219 in |
| Height - Top of ROPS/FOPS | 117 in |
| Turning Radius - Inside | 122 in |
| Gradeability | 57.0 % |
| Height | 86 in |
| Turning Radius - Outside | 214 in |
| Curb clearance | 20 in |
| Overhang Rear | 6 in |
| Overhang Front | 6 in |
Drum
| Drum Width | 84 in |
|---|---|
| Drum Diameter | 60 in |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 55,753 lb |
| Static Linear Load | 15 lb-ft |
| Centrifugal Force - Low | 27,202 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |

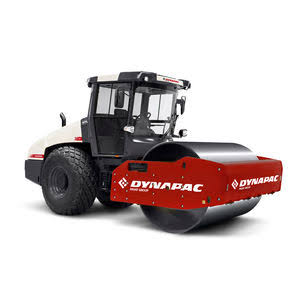

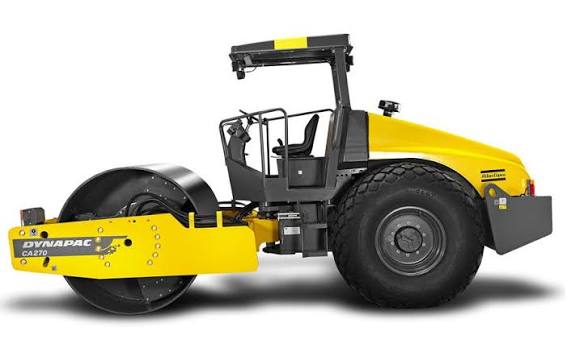

Comparable machines
