BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5

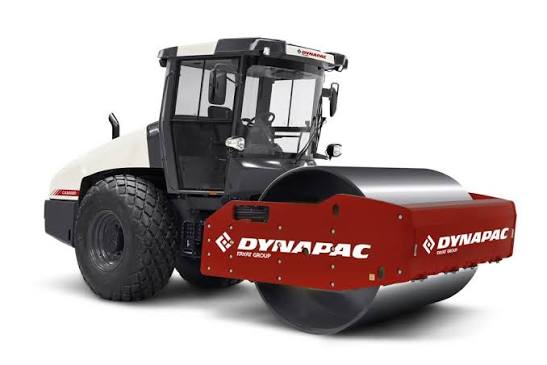

Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 30,865 lb |
|---|---|
| Operating weight ROPS | 27,117 lb |
| Max Speed | 7.5 mph |
| Fuel Capacity | 71.9 gal |
| Tire Size | 23.1 x 26 TR |
| DEF tank capacity | 5.3 gal |
Engine
| Engine Model | TCD61L06 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 173.0 hp |
| Engine Make | Deutz |
| Engine Type | Water cooled turbo charged + Intercooler |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 122 in |
| Overall Length | 236 in |
| Height - Top of ROPS/FOPS | 114 in |
| Turning Radius - Inside | 131 in |
| Gradeability | 55.0 % |
| Height | 84 in |
| Turning Radius - Outside | 221 in |
| Curb clearance | 18 in |
| Overhang Front | 5 in |
| Overhang Rear | 5 in |
Drum
| Drum Width | 84 in |
|---|---|
| Drum Diameter | 60 in |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 62,947 lb |
| Static Linear Load | 17 lb-ft |
| Centrifugal Force - Low | 38,218 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |
| Pad Height | 4 in |
| Pad Surface Area | 23 in³ |
