Dynapac

CA362D

Smooth Drum Roller

Operating Weight
29,101 lb
Max Speed
5.6 mph
Drum Width
84 in
Gross Power
150.0 hp
All smooth drum rollers

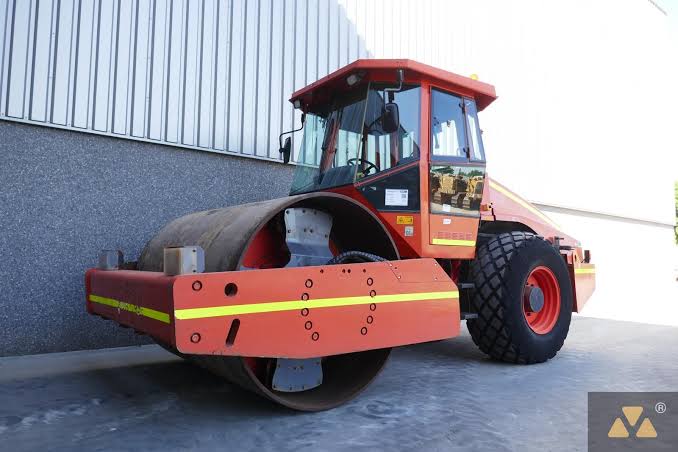

Dynapac CA362D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,101 lb
Max Speed5.6 mph
Fuel Capacity84.6 gal

Engine

Engine specifications
Engine ModelQSB 6.7 T3
Power Measured @2,200 rpm
Gross Power150.0 hp
Aspirationwater cooled turbo diesel with after cooler
MakeJohn Deere

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab118 in
Wheelbase10 in
Overall Length19 in
Overall Width84 in
Turning Radius - Inside122 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1x26

Drum

Drum specifications
Drum Width84 in
Drum Diameter61 in
Vibration Frequency 133 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High67,443 lb
Centrifugal Force - Low32,822 lb
Nominal Amplitude - Low0 in
Frequency30 vpm
