Dynapac

CA4000PD

Padfoot Compactor

Drum Width
84 in
Gross Power
160.0 hp
All padfoot compactors

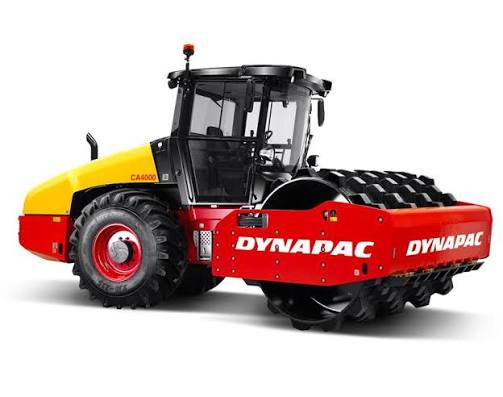

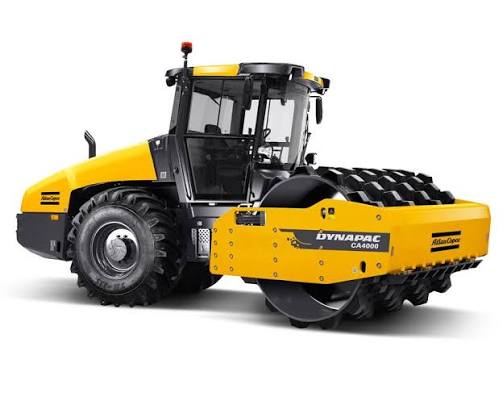

Dynapac CA4000PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity19.1 gal
Tire Size231 x 26 TR
Max Steering Angle38 °

Engine

Engine specifications
Engine ModelQSB4.5
Power Measured @2,200 rpm
Gross Power160.0 hp
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab1,404 in
Wheelbase118 in
Height - Top of ROPS/FOPS118 in
Gradeability57.0 %
Height84 in
Curb clearance18 in
Overhang Front48 in
Overhang Rear48 in

Tires & Wheels

Tires & Wheels specifications
Tires231 x 26 TR

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 130 vpm
Centrifugal Force - High62,950 lb
Drum Diameter59 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads130
Centrifugal Force - Low33,720 lb
Nominal Amplitude - Low0 in
Pad Surface Area23 in³
Vibration Frequency 230 vpm
