Dynapac

CA600D

Smooth Drum Roller

Operating Weight
40,345 lb
Max Speed
6.9 mph
Drum Width
84 in
Gross Power
173.0 hp
All smooth drum rollers
Dynapac CA600D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,345 lb
Max Speed6.9 mph
Fuel Capacity84.6 gal

Engine

Engine specifications
Engine Model6A BT5.9-C
Power Measured @2,200 rpm
Gross Power173.0 hp
Aspirationwater cooled turbo diesel with after cooler

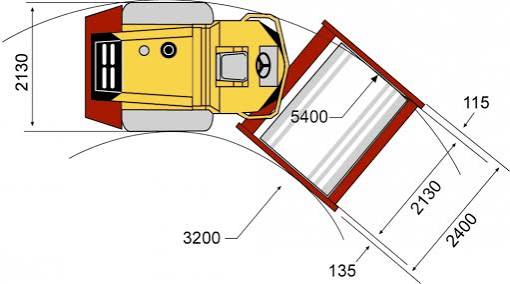

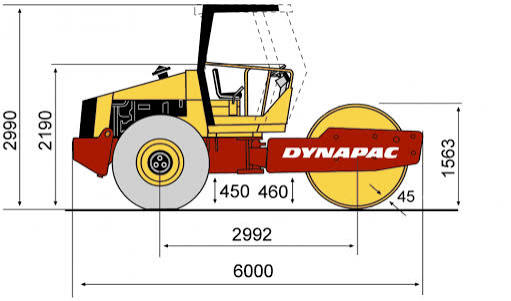

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab117 in
Wheelbase10 in
Overall Length20 in
Overall Width84 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1x26

Drum

Drum specifications
Drum Width84 in
Drum Diameter62 in
Vibration Frequency 129 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High67,443 lb
Vibration Frequency 233 vpm
Centrifugal Force - Low53,505 lb
Nominal Amplitude - Low0 in
