Hypac

C350D

Smooth Drum Roller

Max Speed
10.2 mph
Drum Width
54 in
Gross Power
78.0 hp
All smooth drum rollers
Hypac C350D Smooth Drum Roller
1 / 5

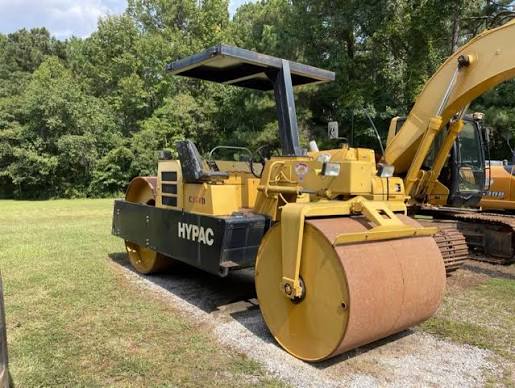

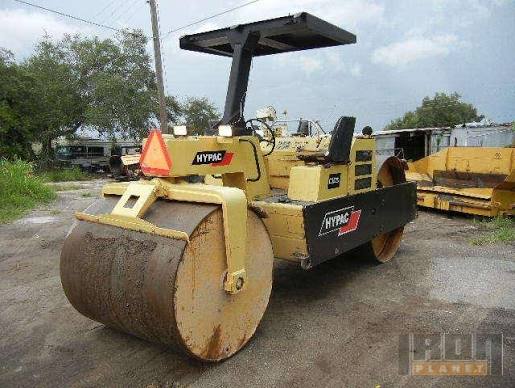

Image 1 of 5
Image: jeffmartinauctioneers.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Max Speed10.2 mph
Fuel Capacity30.2 gal
Operating Width63 in
Operating Voltage12 V
Hydraulic System Fluid Capacity15.0 gal
Cooling System Fluid Capacity4.0 gal
Spray Water Capacity170.4 gal

Engine

Engine specifications
Engine Model4B3.3TAA
Power Measured @2,100 rpm
Gross Power78.0 hp
Number of Cylinders4
MakeCummins

Weights

Weights specifications
Operating Weight - standard17,320 lb
Operating Weight - max ballast24,250 lb
Max Static Linear Load - Drive Drum21 lb-ft
Max Static Linear Load - guide drum16 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase141 in
Overall Length17 in
Overall Width64 in
Height - Top of ROPS/FOPS110 in
Height78 in
Drum Diameter - Front49 in
Drum Diameter - Rear61 in

Drum

Drum specifications
Drum Width54 in
