Dynapac

CC4200C VI

Smooth Drum Roller

Operating Weight
24,300 lb
Max Speed
7.5 mph
Drum Width
66 in
Gross Power
130.1 hp
All smooth drum rollers

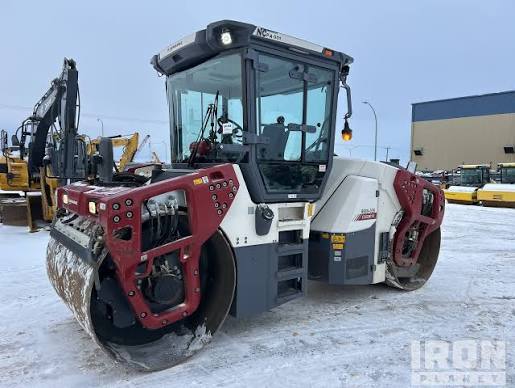

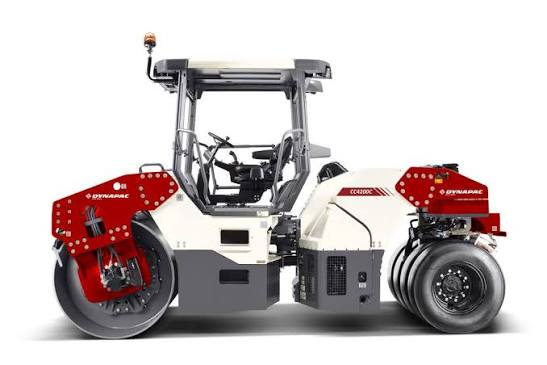

Dynapac CC4200C VI Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,300 lb
Operating weight ROPS20,700 lb
Max Speed7.5 mph
Fuel Capacity48.0 gal
Engine Oil Capacity53.0 gal
Oscillating angle7 °
Steering Angle32 °
Water Spray System Fluid Capacity143.0 gal
DEF tank capacity4.0 gal

Engine

Engine specifications
Engine ModelQSF3.8 IV
Power Measured @2,200 rpm
Gross Power130.1 hp
Engine MakeCummins
Engine TypeWater cooled turbo diesel with After Cooler
Emissions CertificationTier 4f

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab119 in
Wheelbase146 in
Overall Length197 in
Overall Width76 in
Turning Radius - Inside221 in
Gradeability41.0 %
Turning Radius - Outside287 in
Curb clearance32 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic in forward and reverse lever
Parking brakeFailsafe multidisc brake in drum and wheel motors

Tires & Wheels

Tires & Wheels specifications
Wheel Track/Tire Overlap18 in
Track widths13 in
Wheel Spacing5 in

Drum

Drum specifications
Drum Width66 in
Drum Diameter51 in
Vibration Frequency 151 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High28,780 lb
Vibration Frequency 267 vpm
Static Linear Load14 lb-ft
Centrifugal Force - Low18,880 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
