Dynapac
Caterpillar
CB225E
Smooth Drum Roller
26 specifications
1 / 5

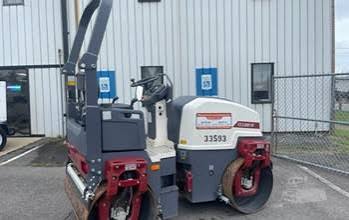

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 7,500 lb |
|---|---|
| Operating weight ROPS | 5,700 lb |
| Max Speed | 6.0 mph |
| Fuel Capacity | 12.0 gal |
| Oscillating angle | 10 ° |
| Steering Angle | 30 ° |
| Water Spray System Fluid Capacity | 54.0 gal |
Engine
| Engine Model | D1703-M IIIA |
|---|---|
| Power Measured @ | 2,800 rpm |
| Gross Power | 34.9 hp |
| Engine Make | Kubota |
| Engine Type | Water cooled |
| Emissions Certification | Tier 4i |
Dimensions
| Ground Clearance | 7 in |
|---|---|
| Height - Top of Cab | 101 in |
| Wheelbase | 67 in |
| Overall Length | 95 in |
| Overall Width | 53 in |
| Turning Radius - Inside | 102 in |
| Gradeability | 42.0 % |
| Turning Radius - Outside | 149 in |
| Curb clearance | 22 in |
| Overhang Rear | 4 in |
| Overhang Front | 4 in |
Brakes & Steering
| Service brake | Hydrostatic in forward and reverse lever |
|---|---|
| Parking brake | Failsafe multidisc brake on drum and wheels |
General Specifications
| Engine type | Kubota-D1703 (T4f) — Starting 2024 Model Year |
|---|---|
| DRUM WIDTH IN. (CM) | 47 (119) — Starting 2024 Model Year |
| INSIDE TURN RADIUS IN. (CM) | 101 (256) — Starting 2024 Model Year |
| WIDTH IN. (CM) | 52 (132) — Starting 2024 Model Year |
| FREQUENCY VPM (HZ) | 3,960/3,660 (66/61) — Starting 2024 Model Year |
Drum
| Drum Width | 47 in |
|---|---|
| Drum Diameter | 28 in |
| Vibration Frequency 1 | 66 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 7,600 lb |
| Vibration Frequency 2 | 61 vpm |
| Static Linear Load | 5 lb-ft |
| Centrifugal Force - Low | 6,500 lb |
| Drum thickness | 1 in |
