Dynapac

CC1300

Smooth Drum Roller

Operating Weight
8,885 lb
Max Speed
6.3 mph
Gross Power
44.0 hp
All smooth drum rollers

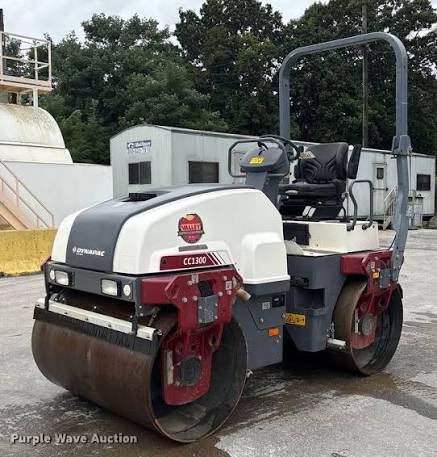

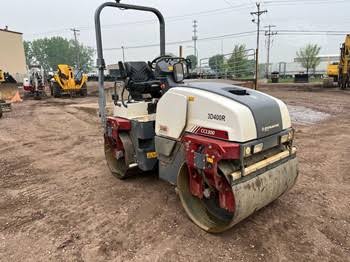

Dynapac CC1300 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machinerytrader.com.au

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,885 lb
Operating weight ROPS8,598 lb
Max Speed6.3 mph
Fuel Capacity13.3 gal
Operating Width57 in
Water Spray Tank Fluid Capacity52.9 gal
Oscillating angle10 °
Steering Angle30 °

Engine

Engine specifications
Engine ModelV2203-M
Gross Power44.0 hp
Engine MakeKubota
MakeKubota

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab109 in
Wheelbase76 in
Overall Length107 in
Overall Width57 in
Gradeability37.0 %
Turning Radius - Outside168 in
Curb clearance24 in
Overhang Rear2 in
Overhang Front2 in

General Specifications

General Specifications specifications
Engine typeKubota- V2203 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)51 (129) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)116 (294) — Starting 2019 Model Year
WIDTH IN. (CM)57 (144) — Starting 2019 Model Year
FREQUENCY HZ3180 — Starting 2019 Model Year

Drum

Drum specifications
Drum Diameter32 in
Vibration Frequency 152 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High8,093 lb
Vibration Frequency 253 vpm
Static Linear Load7 lb-ft
Vibration Frequency3,120 vpm
Centrifugal Force - Low7,419 lb
Drum thickness1 in
