Dynapac

CC2200C

Smooth Drum Roller

Operating Weight
18,100 lb
Max Speed
7.5 mph
Drum Width
59 in
Gross Power
74.0 hp
All smooth drum rollers

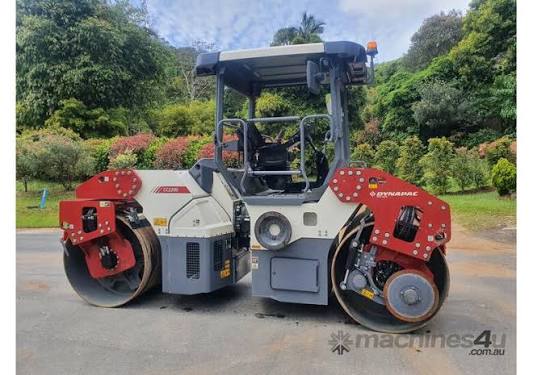

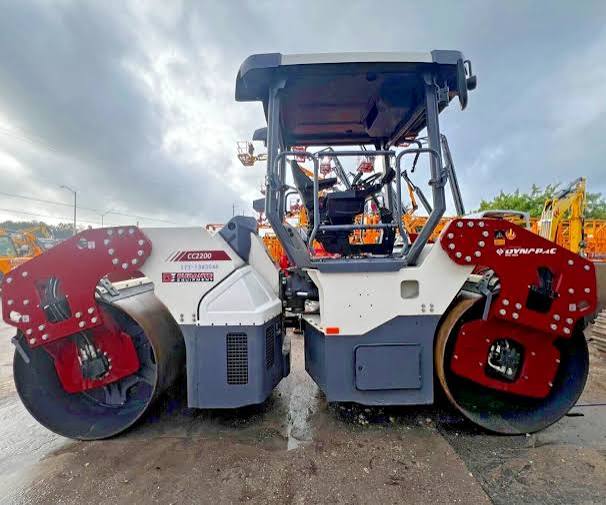

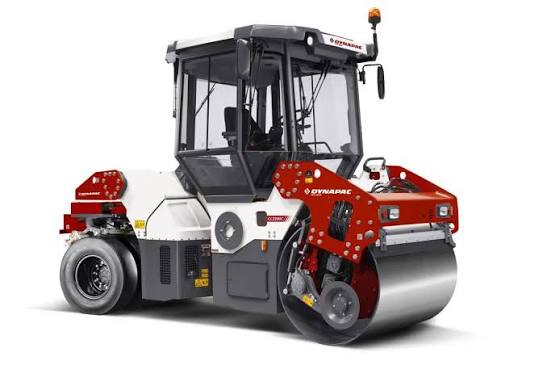

Dynapac CC2200C Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,100 lb
Operating weight ROPS16,300 lb
Max Speed7.5 mph
Fuel Capacity34.0 gal
Engine Oil Capacity21.0 gal
Oscillating angle7 °
Steering Angle32 °
Water Spray System Fluid Capacity198.0 gal

Engine

Engine specifications
Engine ModelTCD 3.6 HT
Power Measured @2,200 rpm
Gross Power74.0 hp
Engine MakeDeutz
Engine TypeWater cooled turbo diesel
Emissions CertificationTier 4f

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab119 in
Wheelbase131 in
Overall Length117 in
Overall Width65 in
Turning Radius - Inside200 in
Gradeability49.0 %
Turning Radius - Outside259 in
Curb clearance28 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic in forward and reverse lever
Parking brakeFailsafe multidisc brake in both drums

Tires & Wheels

Tires & Wheels specifications
Wheel Track/Tire Overlap17 in
Track widths11 in
Wheel Spacing3 in

Drum

Drum specifications
Drum Width59 in
Drum Diameter45 in
Vibration Frequency 148 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High17,540 lb
Vibration Frequency 267 vpm
Static Linear Load12 lb-ft
Centrifugal Force - Low15,060 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
