Hypac

C820C

Smooth Drum Roller

Operating Weight
11,001 lb
Max Speed
6.3 mph
Gross Power
75.0 hp
All smooth drum rollers

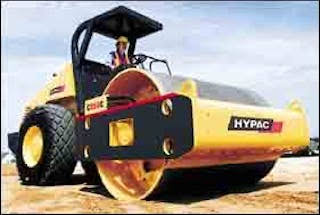

Hypac C820C Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,001 lb
Max Speed6.3 mph
Fuel Capacity29.1 gal
Operating Width61 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelBF4L 1011
Power Measured @2,650 rpm
Gross Power75.0 hp
Number of Cylinders4
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab109 in
Wheelbase7 in
Overall Length14 in
Turning Radius - Inside110 in

Tires & Wheels

Tires & Wheels specifications
Tires340/80R18 IT530

Drum

Drum specifications
Drum Diameter42 in
Vibration Frequency 134 vpm
Vibration Frequency 234 vpm
Static Linear Load9 lb-ft
Vibration Frequency2,040 vpm
Nominal Amplitude - Med0 in
