Dynapac

CC2300

Smooth Drum Roller

Operating Weight
20,723 lb
Max Speed
7.5 mph
Drum Width
59 in
Gross Power
73.8 hp
All smooth drum rollers

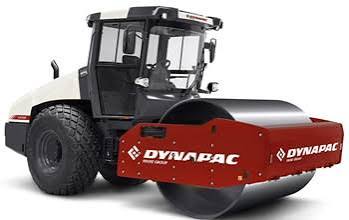

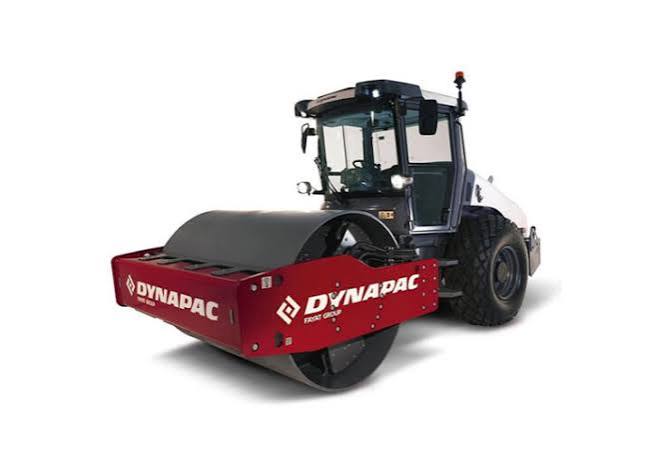

Dynapac CC2300 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,723 lb
Operating weight ROPS18,739 lb
Max Speed7.5 mph
Fuel Capacity34.4 gal
Oscillating angle7 °
Steering Angle32 °

Engine

Engine specifications
Engine ModelTCD 3.6 HT
Power Measured @2,200 rpm
Gross Power73.8 hp
Engine MakeDeutz
Engine TypeWater cooled turbo Diesel

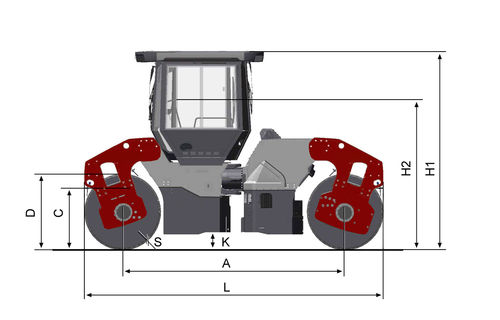

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab119 in
Wheelbase132 in
Overall Length177 in
Overall Width65 in
Turning Radius - Inside200 in
Gradeability39.0 %
Turning Radius - Outside259 in
Curb clearance28 in

General Specifications

General Specifications specifications
Engine typeDeutz TCD 3.6 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)59 (149) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)200 (508) — Starting 2019 Model Year
WIDTH IN. (CM)64 (162) — Starting 2019 Model Year
FREQUENCY HZ2,870/4,010 vpm — Starting 2019 Model Year
FREQUENCY VPM (HZ)2,880/4,020 (48/67) — Starting 2021 Model Year

Drum

Drum specifications
Drum Width59 in
Drum Diameter45 in
Vibration Frequency 148 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High16,186 lb
Vibration Frequency 267 vpm
Static Linear Load13 lb-ft
Centrifugal Force - Low13,264 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
