Dynapac

CC232HF

Smooth Drum Roller

Operating Weight
18,519 lb
Max Speed
8.1 mph
Drum Width
62 in
Gross Power
82.0 hp
All smooth drum rollers

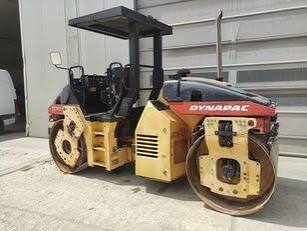

Dynapac CC232HF Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,519 lb
Max Speed8.1 mph
Fuel Capacity31.8 gal

Engine

Engine specifications
Engine ModelBF4L 2011
Power Measured @2,800 rpm
Gross Power82.0 hp
Aspirationair cooled turbo diesel

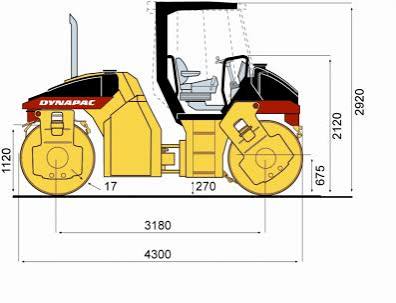

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab115 in
Wheelbase11 in
Overall Length14 in

Drum

Drum specifications
Drum Width62 in
Drum Diameter44 in
Vibration Frequency 151 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High17,535 lb
Vibration Frequency 271 vpm
Centrifugal Force - Low15,287 lb
Nominal Amplitude - Low0 in
