Dynapac

CC3200

Smooth Drum Roller

Operating Weight
20,834 lb
Max Speed
7.5 mph
Drum Width
68 in
Gross Power
73.8 hp
All smooth drum rollers

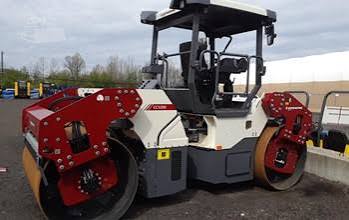

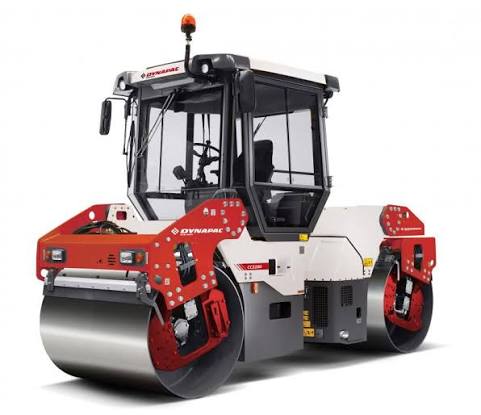

Dynapac CC3200 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,834 lb
Operating weight ROPS17,968 lb
Max Speed7.5 mph
Fuel Capacity34.4 gal
Water Spray Tank Fluid Capacity198.2 gal
Steering Angle32 °

Engine

Engine specifications
Engine ModelTCD 3.6 HT
Power Measured @2,200 rpm
Gross Power73.8 hp
Engine MakeDeutz
Engine TypeWater cooled turbo Diesel

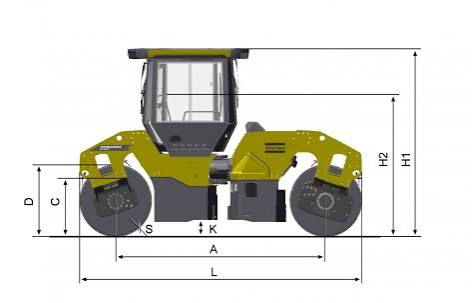

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab119 in
Wheelbase132 in
Overall Length177 in
Overall Width74 in
Turning Radius - Inside196 in
Gradeability32.0 %
Turning Radius - Outside264 in
Curb clearance28 in

General Specifications

General Specifications specifications
Engine typeDeutz TCD 3.6 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)68 (172) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)195 (495) — Starting 2019 Model Year
WIDTH IN. (CM)74 (187) — Starting 2021 Model Year
FREQUENCY HZ2,870/4,010 vpm — Starting 2019 Model Year
FREQUENCY VPM (HZ)2,880/4,020 (48/67) — Starting 2021 Model Year

Drum

Drum specifications
Drum Width68 in
Drum Diameter45 in
Vibration Frequency 148 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High20,233 lb
Vibration Frequency 267 vpm
Static Linear Load11 lb-ft
Centrifugal Force - Low16,861 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
