Dynapac
BOMAG
BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 48,061 lb |
|---|---|
| Operating weight ROPS | 43,652 lb |
| Max Speed | 4.7 mph |
| Fuel Capacity | 34.0 gal |
| Water Spray Tank Fluid Capacity | 198.0 gal |
| Oscillating angle | 7 ° |
| Steering Angle | 32 ° |
Engine
| Engine Model | TCD 3.6 HT |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 74.0 hp |
| Engine Make | Deutz |
| Engine Type | Water cooled turbo diesel |
Dimensions
| Ground Clearance | 11 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 131 in |
| Overall Length | 177 in |
| Overall Width | 73 in |

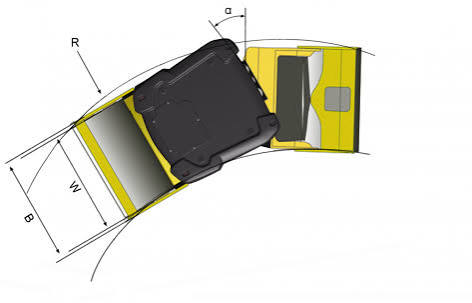

| Turning Radius - Inside | 196 in |
| Gradeability | 35.0 % |
| Turning Radius - Outside | 264 in |
| Curb clearance | 28 in |
General Specifications
| Engine type | Deutz TCD 3.6 (T4f) — Starting 2019 Model Year |
|---|---|
| DRUM WIDTH IN. (CM) | 68 (172) — Starting 2019 Model Year |
| INSIDE TURN RADIUS IN. (CM) | 195 (495) — Starting 2019 Model Year |
| WIDTH IN. (CM) | 73 () — Starting 2023 Model Year |
| FREQUENCY HZ | 2,870/4,010 vpm — Starting 2019 Model Year |
| FREQUENCY VPM (HZ) | 2,880/4,020 (48/67) — Starting 2021 Model Year |
Drum
| Drum Width | 68 in |
|---|---|
| Drum Diameter | 45 in |
| Vibration Frequency 1 | 48 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 18,440 lb |
| Vibration Frequency 2 | 67 vpm |
| Static Linear Load | 12 lb-ft |
| Centrifugal Force - Low | 16,190 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |
