Dynapac
Hamm
3205
Smooth Drum Roller
13 specifications
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 19,621 lb |
|---|---|
| Operating weight ROPS | 17,417 lb |
| Max Speed | 7.5 mph |
| Fuel Capacity | 34.4 gal |
| Engine Oil Capacity | 20.7 gal |
| Oscillating angle | 7 ° |
| Steering Angle | 32 ° |
| Water Spray System Fluid Capacity | 198.2 gal |
Engine
| Engine Model | TCD 3.6 IIIB |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 100.6 hp |
| Engine Make | Deutz |
| Engine Type | Water cooled turbo diesel |
| Emissions Certification | Tier 4i |

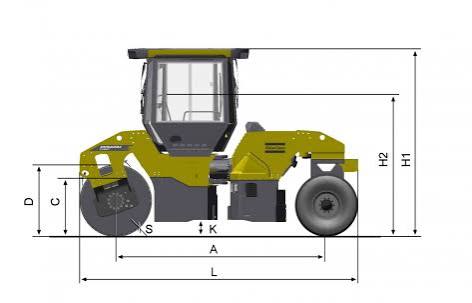

Dimensions
| Ground Clearance | 11 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 132 in |
| Overall Length | 177 in |
| Overall Width | 74 in |
| Gradeability | 43.0 % |
| Turning Radius - Outside | 207 in |
| Curb clearance | 28 in |
Brakes & Steering
| Service brake | Hydrostatic in forward and reverse lever |
|---|---|
| Parking brake | Failsafe multidisc brake in both drums |
Tires & Wheels
| Wheel Track/Tire Overlap | 18 in |
|---|---|
| Track widths | 11 in |
| Wheel Spacing | 7 in |
Drum
| Drum Width | 68 in |
|---|---|
| Drum Diameter | 45 in |
| Vibration Frequency 1 | 48 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 17,760 lb |
| Vibration Frequency 2 | 67 vpm |
| Static Linear Load | 12 lb-ft |
| Centrifugal Force - Low | 14,388 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |
