Dynapac

CC4200

Smooth Drum Roller

Operating Weight
25,023 lb
Max Speed
7.5 mph
Drum Width
68 in
Gross Power
130.1 hp
All smooth drum rollers

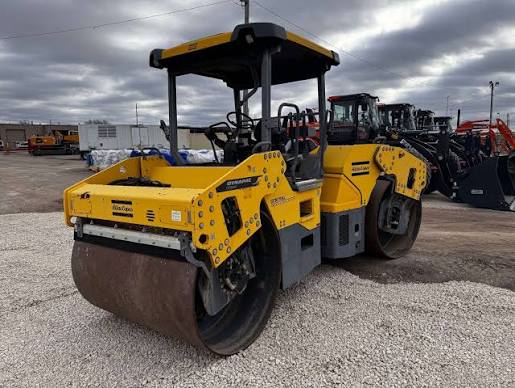

Dynapac CC4200 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: christofano.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,023 lb
Operating weight ROPS22,487 lb
Max Speed7.5 mph
Fuel Capacity63.5 gal
Water Spray Tank Fluid Capacity237.8 gal
Oscillating angle7 °
Steering Angle32 °

Engine

Engine specifications
Engine ModelQSB 4.5 IIIB
Power Measured @2,200 rpm
Gross Power130.1 hp
Engine MakeCummins
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab119 in
Wheelbase145 in
Overall Length197 in
Overall Width74 in
Gradeability45.0 %
Turning Radius - Outside235 in
Curb clearance34 in

General Specifications

General Specifications specifications
Engine typeCummins QSF 3.8 — Starting 2018 Model Year
DRUM WIDTH IN. (CM)68 (172) — Starting 2016 Model Year
INSIDE TURN RADIUS IN. (CM)219 (556) — Starting 2016 Model Year
WIDTH IN. (CM)74 (187) — Starting 2016 Model Year
FREQUENCY HZ3,060/4,020 — Starting 2016 Model Year

Drum

Drum specifications
Drum Width68 in
Drum Diameter51 in
Vibration Frequency 151 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High31,249 lb
Vibration Frequency 267 vpm
Static Linear Load14 lb-ft
Centrifugal Force - Low20,683 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
