Dynapac
BOMAG

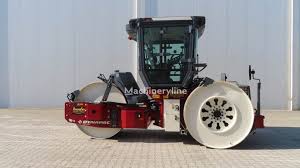

BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 29,106 lb |
|---|---|
| Operating weight ROPS | 24,255 lb |
| Max Speed | 9.0 mph |
| Fuel Capacity | 29.0 gal |
| Water Spray Tank Fluid Capacity | 140.0 gal |
| Oscillating angle | 9 ° |
| Steering Angle | 35 ° |
Engine
| Engine Model | TD 3.6 L4 IIIB |
|---|---|
| Power Measured @ | 2,600 rpm |
| Gross Power | 73.8 hp |
| Aspiration | Water cooled turbo diesel |
| Engine Make | Deutz |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 114 in |
| Overall Length | 188 in |
| Overall Width | 42 in |
| Turning Radius - Inside | 144 in |
| Turning Radius - Outside | 228 in |
Brakes & Steering
| Service brake | Hydrostatic in forward and reverse lever |
|---|---|
| Parking brake | Failsafe multidisc on all 3 drums |
Drum
| Drum Width | 83 in |
|---|---|
| Static Linear Load | 24 lb-ft |
