Dynapac

CS1400N

Smooth Drum Roller

Operating Weight
28,665 lb
Max Speed
9.0 mph
Drum Width
83 in
Gross Power
73.8 hp
All smooth drum rollers

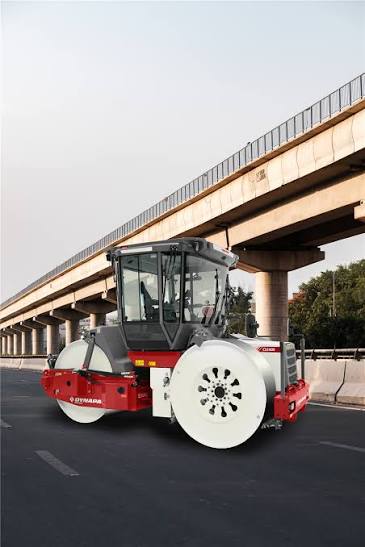

Dynapac CS1400N Smooth Drum Roller
1 / 5
Image 1 of 5
Image: india-mproduct.global-ce.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,665 lb
Operating weight ROPS23,814 lb
Max Speed9.0 mph
Fuel Capacity29.0 gal
Water Spray Tank Fluid Capacity140.0 gal
Oscillating angle9 °
Steering Angle35 °

Engine

Engine specifications
Engine ModelTD 3.6 L4 IIIB
Power Measured @2,200 rpm
Gross Power73.8 hp
AspirationWater cooled turbo diesel
Engine MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab137 in
Wheelbase114 in
Overall Length188 in
Overall Width85 in
Turning Radius - Inside141 in
Turning Radius - Outside223 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic in forward and reverse lever
Parking brakeFailsafe multidisc on all 3 drums

General Specifications

General Specifications specifications
Engine typeDeutz TD 3.6 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)83 (210) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)144 (366) — Starting 2023 Model Year
WIDTH IN. (CM)83 (210) — Starting 2019 Model Year

Drum

Drum specifications
Drum Width83 in
Drum Diameter59 in
Static Linear Load23 lb-ft
