Dynapac
BOMAG
BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 28,660 lb |
|---|---|
| Operating weight ROPS | 27,778 lb |
| Max Speed | 9.4 mph |
| Fuel Capacity | 29.1 gal |
| Water Spray Tank Fluid Capacity | 140.1 gal |
| Oscillating angle | 9 ° |

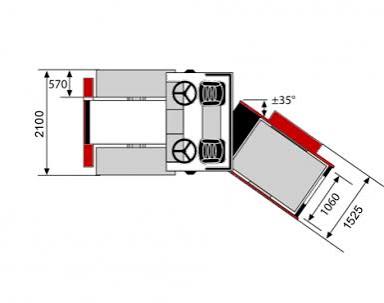

| Steering Angle | 35 ° |
Engine
| Engine Model | TD 3.6 L4 IIIB |
|---|---|
| Power Measured @ | 2,300 rpm |
| Gross Power | 73.8 hp |
| Aspiration | Water cooled turbo diesel |
| Engine Make | Deutz |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 118 in |
| Overall Length | 188 in |
| Overall Width | 85 in |
| Turning Radius - Inside | 141 in |
| Turning Radius - Outside | 223 in |
Brakes & Steering
| Service brake | Hydrostatic in forward and reverse lever |
|---|---|
| Parking brake | Failsafe multidisc on all 3 drums |
Drum
| Drum Width | 83 in |
|---|---|
| Drum Diameter | 59 in |
| Static Linear Load | 23 lb-ft |
