BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5
Image 1 of 5
Specifications
19 data points
Operating Specifications
| Max Speed | 9.4 mph |
|---|---|
| Fuel Capacity | 29.1 gal |
| Spray Water Capacity | 140.1 gal |
Engine
| Engine Model | B4.5 T |
|---|---|
| Power Measured @ | 1,800 rpm |
| Gross Power | 97.9 hp |
| Aspiration | Turbocharged |
Weights
| Operating Weight - standard | 24,251 lb |
|---|---|
| Operating Weight - max ballast | 29,101 lb |
| Max Static Linear Load - Drive Drum | 71 lb-ft |
| Max Static Linear Load - guide drum | 70 lb-ft |

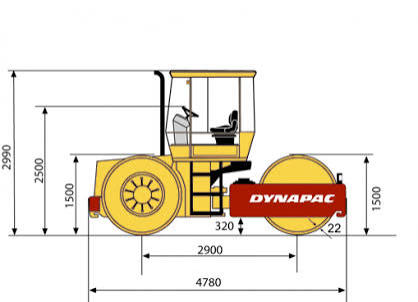

Dimensions
| Ground Clearance | 13 in |
|---|---|
| Wheelbase | 115 in |
| Overall Length | 16 in |
| Overall Width | 85 in |
| Height - Top of ROPS/FOPS | 119 in |
| Height | 100 in |
| Drum Diameter - Front | 60 in |
| Drum Diameter - Rear | 60 in |
