Dynapac

F1800W

Asphalt Paver

Paving Width - max
120 in
Gross Power
72.5 hp
All asphalt pavers

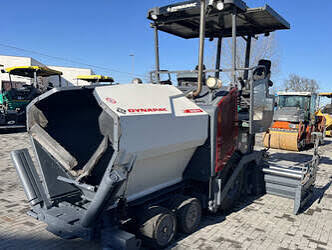

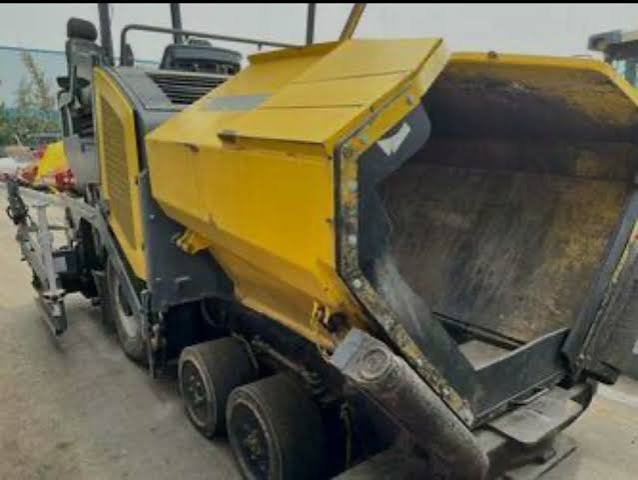

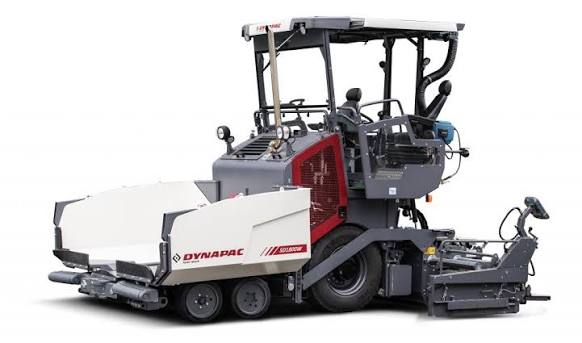

Dynapac F1800W Asphalt Paver
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,600 lb
Fuel Capacity19.3 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelTD 4
Displacement177 in³
Power Measured @2,200 rpm
Gross Power72.5 hp
Number of Cylinders4
Engine MakeDeutz

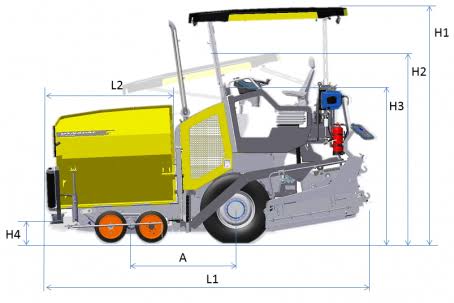

Dimensions

Dimensions specifications
Wheelbase64 in
Overall Length198 in
Transport Height115 in
Tire Size385/65-R22 5
Track Width10 in
Height142 in
Working Width- Maximum,186 in
Working Width- Minimum28 in

General Specifications

General Specifications specifications
Weight lbs (kg)24,250 (11,000) — Starting 2025 Model Year
Engine typeDeutz 2.9L TD (V) — Starting 2025 Model Year
Paving Speed fpm (mpm)82 (25) — Starting 2025 Model Year
SCREED SIZE FT. (M)6 (1.83) — Starting 2025 Model Year
Paving Width ft. (m)2-15 (.6-4.5) — Starting 2025 Model Year
HOPPER CAPACITY TONS (T)11.5 (10.4) — Starting 2025 Model Year

Hopper/Paver

Hopper/Paver specifications
Paving Width - max120 in
Paving Speed - max0.9 mph
Hopper Capacity21,000 lb
Auger Diameter13 in
Paving Thickness - max8 in
Hopper Length2 in
Conveyor Width28 in
