Dynapac

SD1800W

Asphalt Paver

Paving Width - max
120 in
Gross Power
72.5 hp
All asphalt pavers

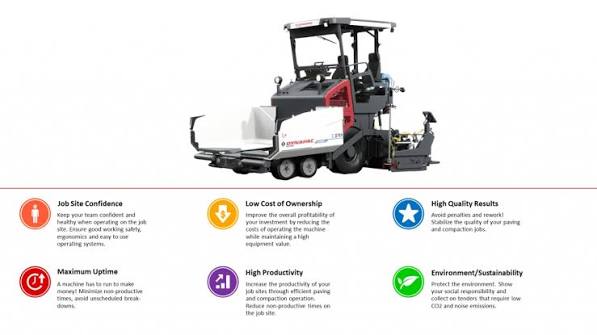

Dynapac SD1800W Asphalt Paver
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,000 lb
Fuel Capacity19.3 gal
Operating Voltage24 V

Engine

Engine specifications
Displacement177 in³
Power Measured @2,200 rpm
Gross Power72.5 hp
Number of Cylinders4
Engine MakeDeutz

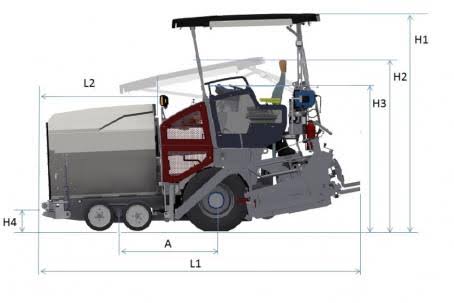

Dimensions

Dimensions specifications
Wheelbase64 in
Overall Length198 in
Transport Height115 in
Height142 in
Working Width- Maximum,186 in
Working Width- Minimum28 in

Undercarriage

Undercarriage specifications
Crawler length82 in
Crawler Width10 in

Hopper/Paver

Hopper/Paver specifications
Paving Width - max120 in
Paving Speed - max0.9 mph
Hopper Capacity21,000 lb
Travel Speed - max9.4 mph
Auger Diameter13 in
Paving Thickness - max8 in
Hopper Length2 in
Conveyor Width28 in
