Dynapac

SD2500CS

Asphalt Paver

Paving Width - max
96 in
Length w/ Screed
96 in
All asphalt pavers

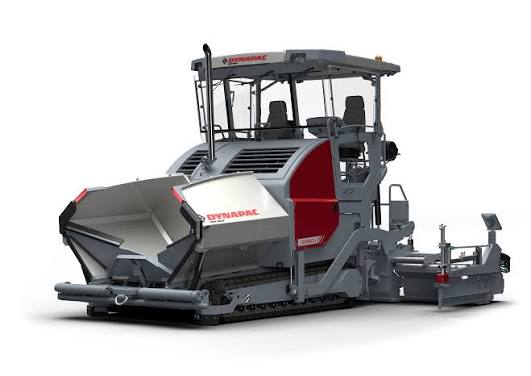

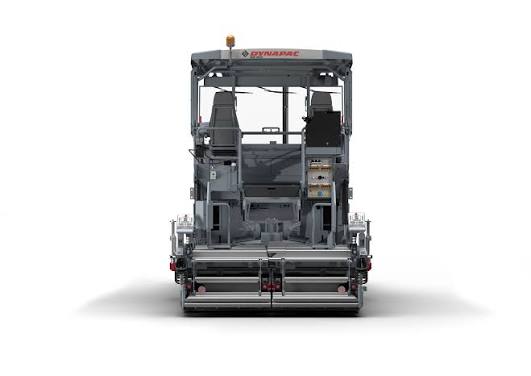

Dynapac SD2500CS Asphalt Paver
1 / 5
Image 1 of 5
Image: equipmentworld.com

Specifications

12 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,785 lb

Engine

Engine specifications
MakeCummins

Dimensions

Dimensions specifications
Length w/ Screed96 in

General Specifications

General Specifications specifications
Weight lbs (kg)40,785 (18,500) — Starting 2025 Model Year
Engine typeCummins QSB 6.7 (t4f) — Starting 2025 Model Year
Paving Speed fpm (mpm)92 (28) — Starting 2025 Model Year
SCREED SIZE FT. (M)8 (2.44) / 10 (3.00) — Starting 2025 Model Year
Paving Width ft. (m)8-32.8 (2.4 - 10) — Starting 2025 Model Year
HOPPER CAPACITY TONS (T)15 (13.6) — Starting 2025 Model Year

Hopper/Paver

Hopper/Paver specifications
Paving Width - max96 – 384 in
Hopper Capacity15 lb
Paving Speed1.0 mph
