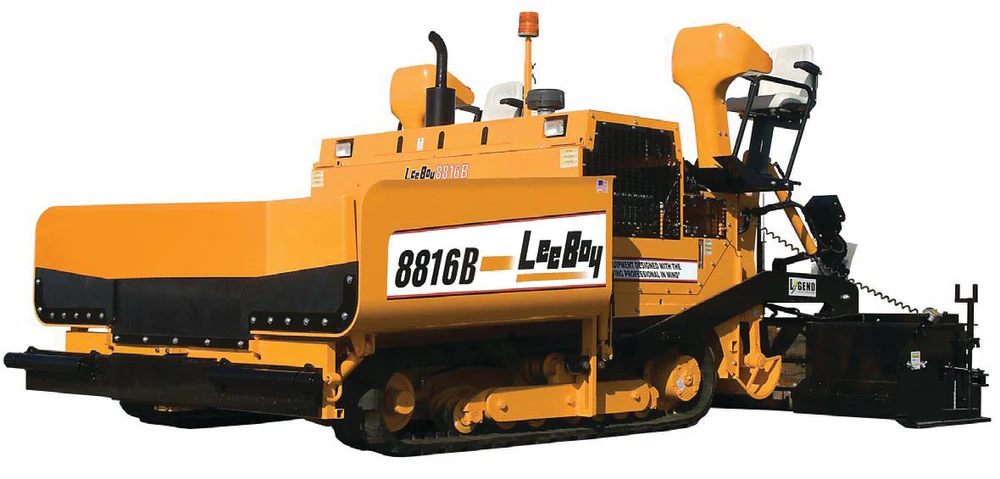

Leeboy
8816
- Operating Weight w/ Screed
- 25,000 lb
- Paving Width - max
- 193 in
- Gross Power
- 130.0 hp
- Length w/ Screed
- 204 in
1 / 5
Image 1 of 5
Specifications
11 data points
Operating Specifications
| Operating Weight w/ Screed | 25,000 lb |
|---|---|
| Fuel Capacity | 29.4 gal |
| Hydraulic System Fluid Capacity | 50.2 gal |
Engine
| Gross Power | 130.0 hp |
|---|---|
| Aspiration | Turbo |
Dimensions
| Transport Width | 102 in |
|---|---|
| Transport Height | 108 in |
| Length w/ Screed | 204 in |
Hopper/Paver
| Paving Width - max | 193 in |
|---|---|
| Paving Speed - max | 1.6 mph |
| Travel Speed - max | 4.2 mph |
