Fendt

513

Tractor

Operating Weight
23,149 lb
Displacement
1,346 in³
Power Measured @
1,900 rpm
Gross Power
118.1 hp
All tractors

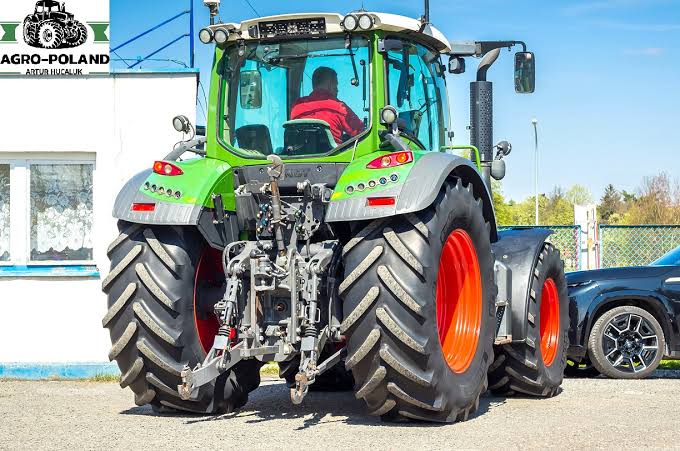

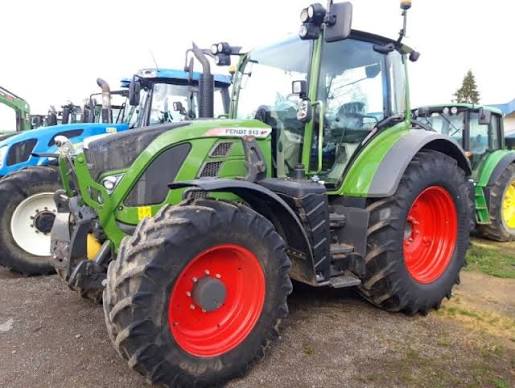

Fendt 513 Tractor
1 / 5
Image 1 of 5
Image: brookfieldtractor.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,149 lb
Fuel Capacity78.8 gal
Operating Voltage14 V

Engine

Engine specifications
Displacement1,346 in³
Power Measured @1,900 rpm
Gross Power118.1 hp
Net Power132.8 hp
Number of Cylinders4
Torque Measured @1,500 rpm
PTO Power112.7 hp
Bore4 in
Stroke5 in
Torque Rise40.0 %
Alternator200 A
Rated Engine Speed2,100 rpm
Cooling methodWater
Engine oil service interval hours500
Engine PTO front1,000 rpm
Engine PTO rear540 rpm

Weights

Weights specifications
Implement weight5,423 lb
Max vertical hitch load4,409 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab117 in
Wheelbase101 in
Overall Length175 in
Overall Width100 in
Turning Radius216 in
Turning Circle208,269 in

Transmission

Transmission specifications
Max Speed24.9 mph
Drawbar Pull14,998 lb

Lift System

Lift System specifications
Front linkage max lift capacity7,688 lb
