Fendt

714

Tractor

Operating Weight
14,562 lb
Displacement
370 in³
Power Measured @
2,100 rpm
Gross Power
143.5 hp
All tractors

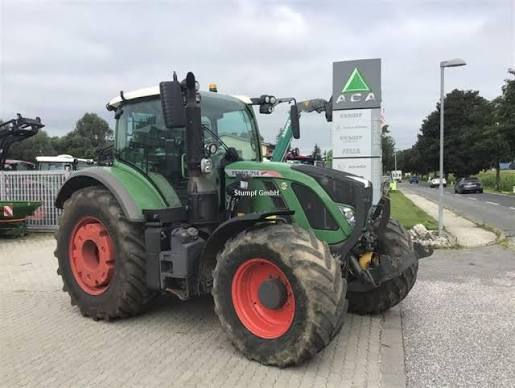

Fendt 714 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight14,562 lb
Fuel Capacity105.7 gal
Alternator Supplied Amperage200 A
Operating Voltage12 V

Engine

Engine specifications
Displacement370 in³
Power Measured @2,100 rpm
Gross Power143.5 hp
Net Power128.8 hp
Number of Cylinders6
Aspirationturbocharged intercooler
Torque Rise38.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase89 in
Overall Width101 in
Overall Height121 in
Turning Circle217 in
Track width rear76 in
Track width front77 in

Transmission

Transmission specifications
Max Speed31.1 mph
Transmission TypeStepless Vario transmission
