Fendt

716

Tractor

Operating Weight
14,562 lb
Displacement
370 in³
Power Measured @
2,100 rpm
Gross Power
162.3 hp
All tractors

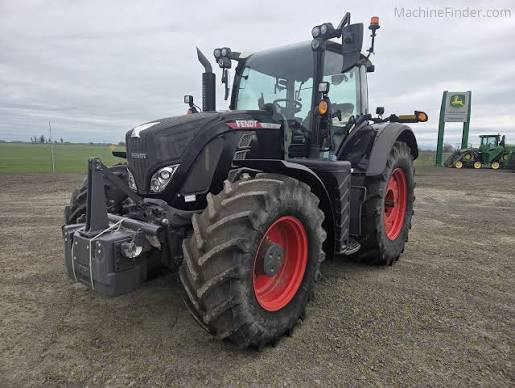

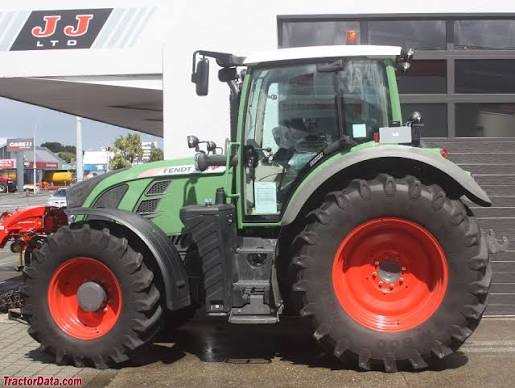

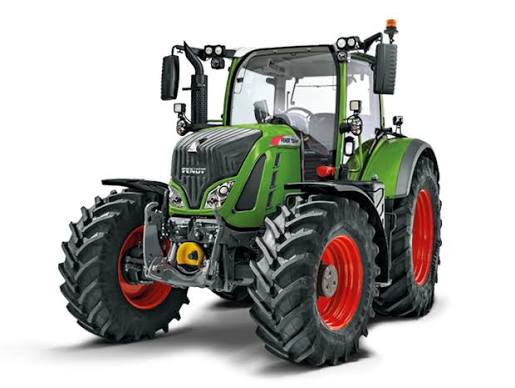

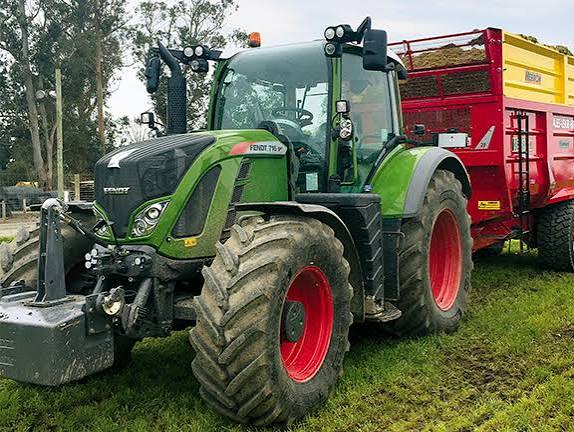

Fendt 716 Tractor
1 / 5
Image 1 of 5
Image: agtecher.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight14,562 lb
Fuel Capacity89.9 gal
Alternator Supplied Amperage200 A
Operating Voltage12 V

Engine

Engine specifications
Engine Model716
Displacement370 in³
Power Measured @2,100 rpm
Gross Power162.3 hp
Net Power144.9 hp
Number of Cylinders6
Aspirationturbocharged intercooler
Torque Rise36.0 %
Starter5.4 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab119 in
Wheelbase109 in
Overall Length206 in
Overall Width101 in
Overall Height121 in
Width Outside Frame102 in

Transmission

Transmission specifications
Max Speed31.1 mph
Transmission TypeStepless Vario transmission
