Fendt

718

Tractor

Operating Weight
15,399 lb
Displacement
370 in³
Power Measured @
2,100 rpm
Gross Power
177.1 hp
All tractors

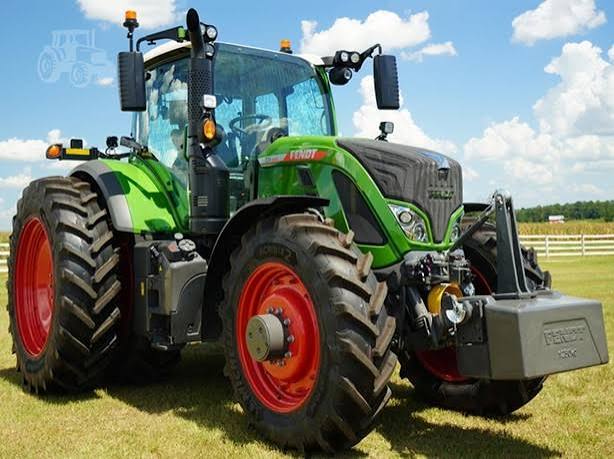

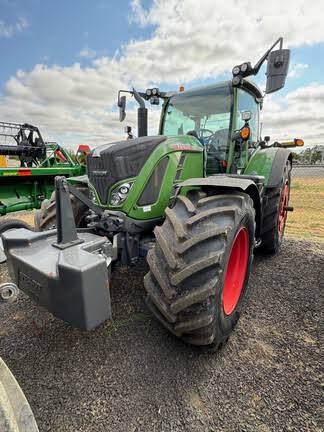

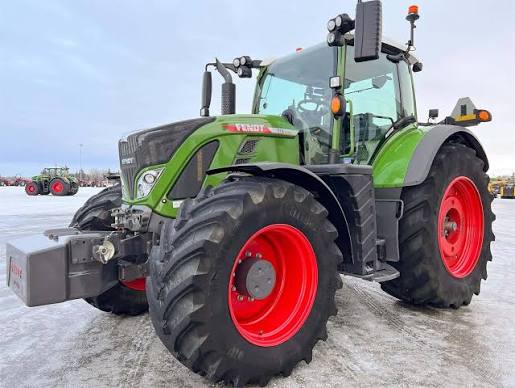

Fendt 718 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,399 lb
Fuel Capacity89.9 gal
Alternator Supplied Amperage200 A
Operating Voltage12 V

Engine

Engine specifications
Engine Model718
Displacement370 in³
Power Measured @2,100 rpm
Gross Power177.1 hp
Net Power162.3 hp
Number of Cylinders6
Aspirationturbocharged intercooler
Torque Rise35.0 %
Starter5.4 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab119 in
Wheelbase109 in
Overall Length206 in
Overall Height121 in
Width Outside Frame102 in
Track width rear76 in
Track width front77 in

Transmission

Transmission specifications
Max Speed31.1 mph
Transmission TypeStepless Vario transmission
