Fendt

720

Tractor

Operating Weight
15,399 lb
Displacement
44 in³
Power Measured @
1,800 rpm
Gross Power
200.0 hp
All tractors
Fendt 720 Tractor
1 / 5

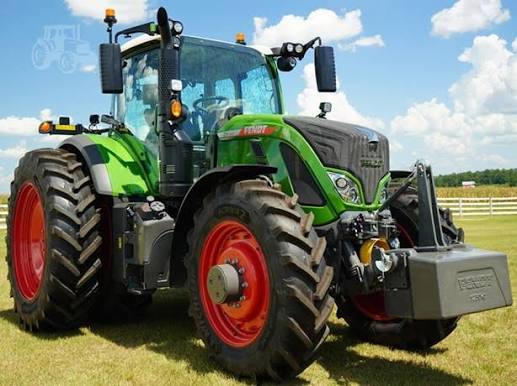

Image 1 of 5
Image: schmidtinc.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,399 lb
Fuel Capacity105.7 gal
Alternator Supplied Amperage200 A
Operating Voltage12 V

Engine

Engine specifications
Engine Model720
Displacement44 in³
Power Measured @1,800 rpm
Gross Power200.0 hp
Net Power185.0 hp
Number of Cylinders6
Aspirationturbocharged intercooler
PTO Power165.0 hp
Bore4 in
Stroke5 in
Starter5.4 hp
Engine oil service interval hours500

Weights

Weights specifications
Implement weight7,011 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase109 in
Overall Length206 in
Overall Width101 in
Overall Height121 in
Turning Circle217 in
Track width rear76 in
Track width front77 in

Transmission

Transmission specifications
Max Speed31.1 mph
Transmission TypeML 180

Electrical System

Electrical System specifications
Alternator—
Battery12 V 180 Ah
Starter333 Amp

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Rear PTO1000
Front PTO540 rpm
