Fendt

724

Tractor

Operating Weight
15,399 lb
Displacement
44 in³
Power Measured @
1,800 rpm
Gross Power
240.0 hp
All tractors

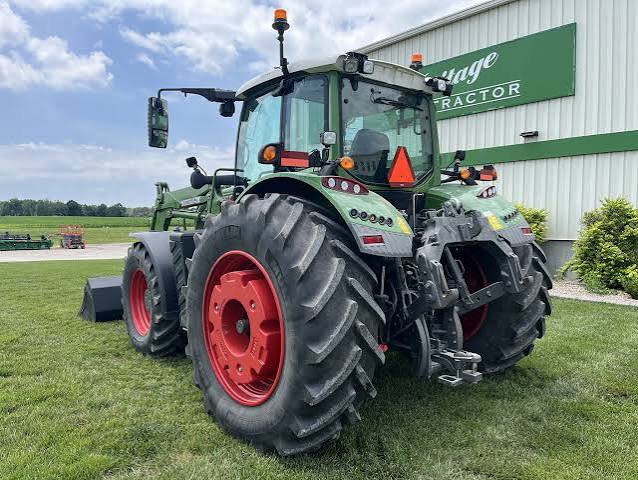

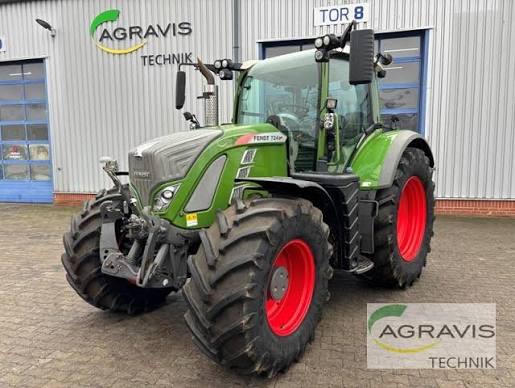

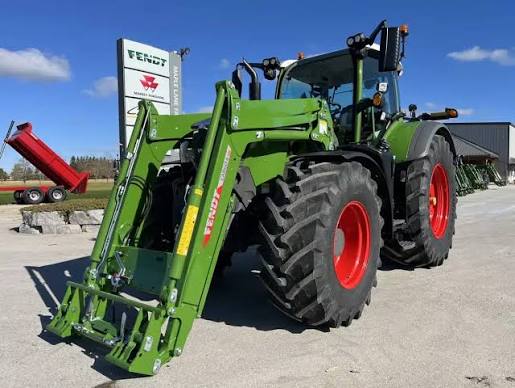

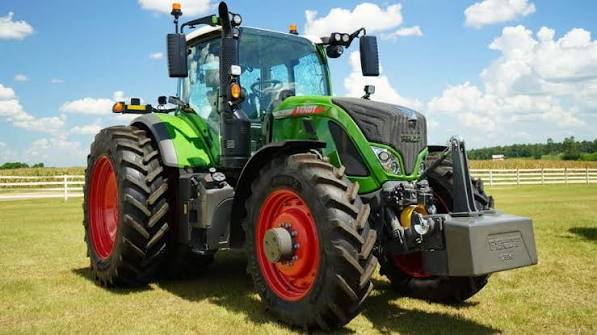

Fendt 724 Tractor
1 / 5
Image 1 of 5
Image: fwi.co.uk

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,399 lb
Fuel Capacity105.7 gal
Engine Oil Capacity132.1 gal
DEF tank capacity10.1 gal

Engine

Engine specifications
Engine Model724
Displacement44 in³
Power Measured @1,800 rpm
Gross Power240.0 hp
Net Power220.0 hp
Number of Cylinders6
Aspirationturbocharged intercooler
PTO Power195.0 hp
Bore4 in
Stroke5 in
Rated Engine Speed2,100 rpm
Starter5.4 hp
Engine oil service interval hours500

Weights

Weights specifications
Implement weight7,011 lb

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase1,097 in
Overall Length206 in
Overall Width101 in
Overall Height121 in
Turning Circle217 in
Track width rear77 in
Track width front77 in

Transmission

Transmission specifications
Max Speed31.1 mph
Transmission TypeML 180 HD

Electrical System

Electrical System specifications
Alternator—
Battery12 V 180 Ah
Starter333 Amp

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Rear PTO1000
Front PTO540 rpm
