Fendt

820

Tractor

Operating Weight
15,840 lb
Displacement
370 in³
Power Measured @
2,100 rpm
Gross Power
202.5 hp
All tractors

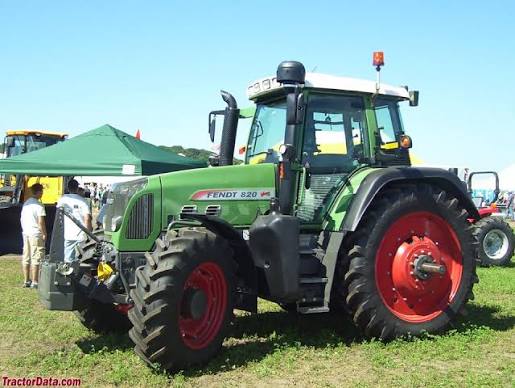

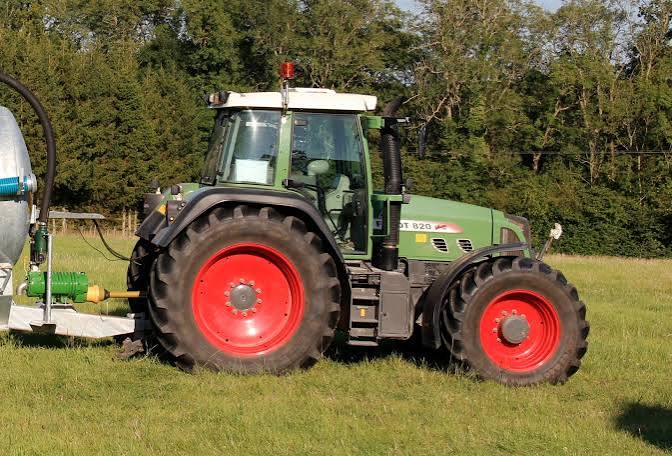

Fendt 820 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,840 lb
Fuel Capacity89.9 gal
Alternator Supplied Amperage200 A
Operating Voltage12 V

Engine

Engine specifications
Displacement370 in³
Power Measured @2,100 rpm
Gross Power202.5 hp
Net Power187.8 hp
Number of Cylinders6
AspirationTurbocharger and intercooler
Torque Rise35.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.1 gal/min
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab120 in
Wheelbase108 in
Overall Length16 in
Width Outside Frame102 in

Transmission

Transmission specifications
Max Speed31.1 mph
Transmission Typestepless Vario transmission
