Fendt

824

Tractor

Operating Weight
20,503 lb
Displacement
370 in³
Power Measured @
2,100 rpm
Gross Power
220.0 hp
All tractors

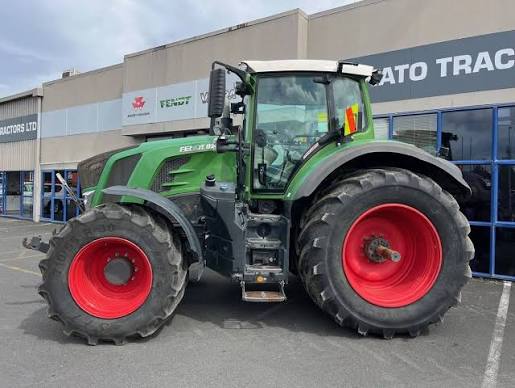

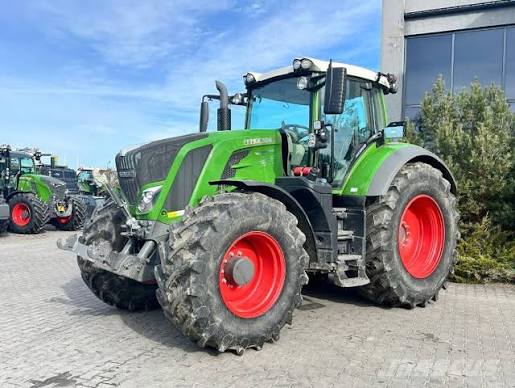

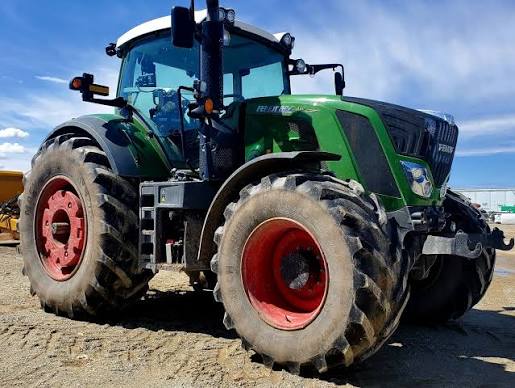

Fendt 824 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,503 lb
Fuel Capacity133.5 gal
3 Point Hitch Lift Capacity @ 24 inches11,307 lb
Alternator Supplied Amperage150 A
Operating Voltage12 V
Drawbar Static Vertical Load Rating18,300 lb

Engine

Engine specifications
Displacement370 in³
Power Measured @2,100 rpm
Gross Power220.0 hp
Number of Cylinders6
Torque Measured @1,900 rpm
PTO Power205.0 hp
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase114 in
Overall Length208 in
Turning Radius216 in
Track width rear78 in
Track width front79 in

Transmission

Transmission specifications
Max Speed31.1 mph
Number of Forward Gears4
Transmission TypeContinuously variable Vario transmission
Number of Reverse Gears4
