Fendt

924

Tractor

Operating Weight
22,223 lb
Displacement
436 in³
Power Measured @
2,200 rpm
Gross Power
240.0 hp
All tractors

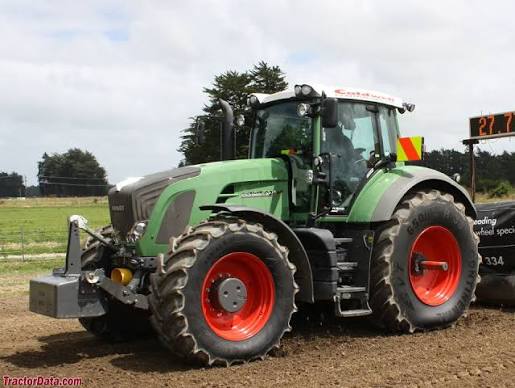

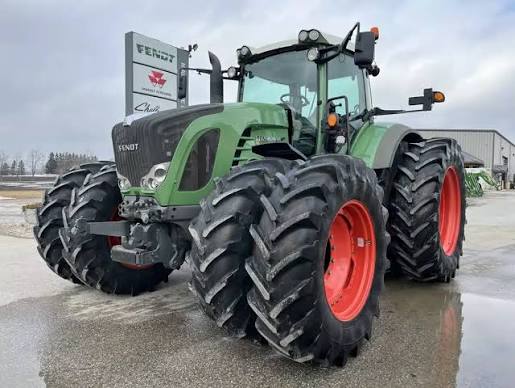

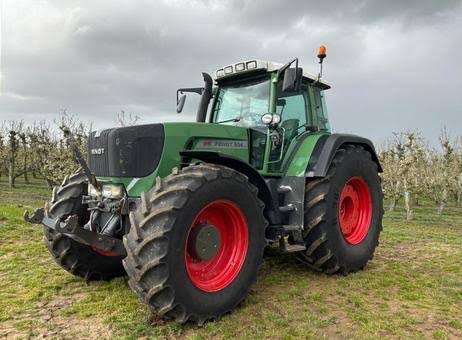

Fendt 924 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,223 lb
Fuel Capacity158.6 gal
Operating Voltage12 V
DEF tank capacity16.0 gal

Engine

Engine specifications
Displacement436 in³
Power Measured @2,200 rpm
Gross Power240.0 hp
Net Power270.0 hp
Number of Cylinders6
AspirationTurbocharger and intercooler
PTO Power200.0 hp
Stroke5 in
Bore4 in
Torque Rise41.0 %
Engine speed - Rated speed, full load1,900 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.3 gal/min
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab131 in
Wheelbase120 in
Overall Length223 in
Width Outside Frame109 in
Track Width807,170 in

Transmission

Transmission specifications
Max Speed31.0 mph
Transmission Typestepless Vario transmission

Electrical System

Electrical System specifications
Alternator150
Battery170 Ah
Starter4.7 KW
