Fendt

930

Tractor

Operating Weight
22,620 lb
Displacement
436 in³
Power Measured @
2,200 rpm
Gross Power
270.0 hp
All tractors

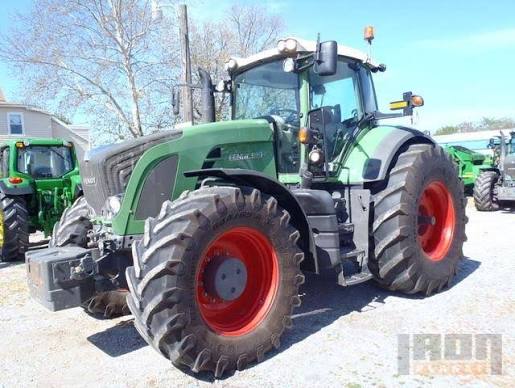

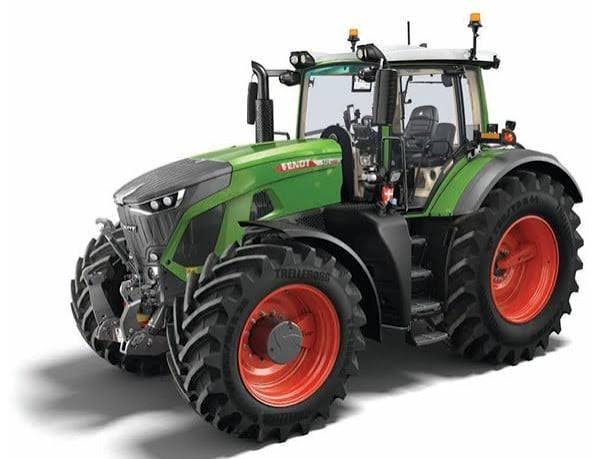

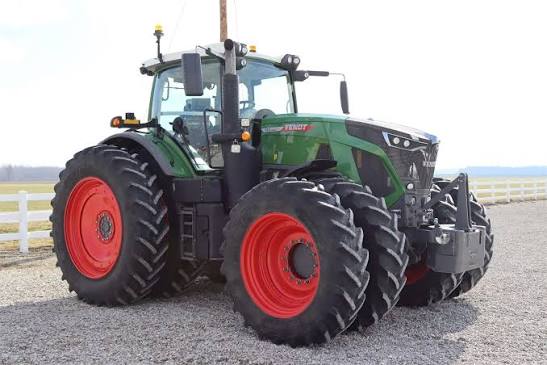

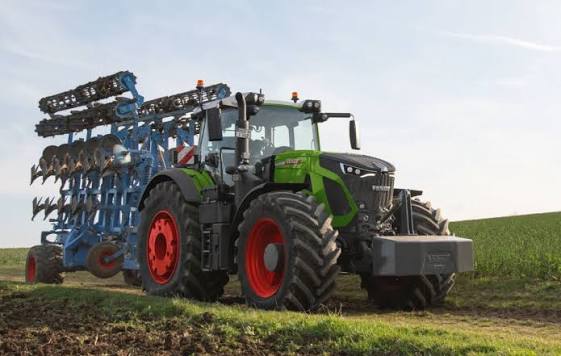

Fendt 930 Tractor
1 / 5
Image 1 of 5
Image: pentagonfarm.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,620 lb
Fuel Capacity159.0 gal
Operating Voltage12 V

Engine

Engine specifications
Displacement436 in³
Power Measured @2,200 rpm
Gross Power270.0 hp
Net Power300.0 hp
Number of Cylinders6
AspirationTurbocharger and intercooler
PTO Power250.0 hp
Stroke5 in
Bore4 in
Torque Rise34.0 %
Engine speed - Rated speed, full load1,900 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.3 gal/min
Relief Valve Pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab131 in
Wheelbase121 in
Overall Length108 in
Width Outside Frame109 in
Track Width83 in

Transmission

Transmission specifications
Max Speed31.0 mph
Transmission Typestepless Vario transmission

Electrical System

Electrical System specifications
Alternator150
Battery170 Ah
Starter4.7 KW
