Fiat-Hitachi

W130PL

Wheel Loader

Operating Weight
27,359 lb
Bucket Capacity - heaped
2.69 yd³
Gross Power
140.0 hp
Net Power
130.0 hp
All wheel loaders

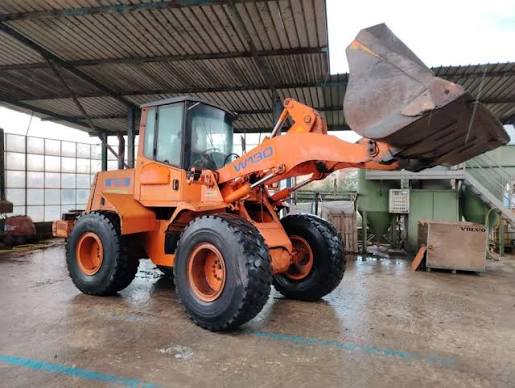

Fiat-Hitachi W130PL Wheel Loader
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,359 lb
Fuel Capacity45.0 gal
Tire Size20.5 - 25 XTLA / 555/70 - 25 XLD
Hydraulic System Fluid Capacity27.8 gal
Operating Voltage24 V
Turning Radius24 in
Rear Axle Oscillation24 °
Alternator Supplied Amperage55 A
Cooling System Fluid Capacity7.4 gal
Transmission Fluid Capacity5.3 gal
Engine Oil Capacity3.2 gal
Static Tipping Load - Bucket17,372 lb
Front Diff Fluid Capacity5.6 gal
Rear Diff Fluid Capacity7.7 gal
Static Tipping Load - Forks13,933 lb

Engine

Engine specifications
Engine ModelFiat- 8065T
Displacement360 in³
Power Measured @2,200 rpm
Gross Power140.0 hp
Net Power130.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque412 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.6 gal/min
Raise Time5.8 s
Lower Time3.2 s
Dump Time2.6 s
Relief Valve Setting3,045 psi
Pump TypeSealed system with anticavitation and relief valves

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab128 in
Wheelbase115 in
Hinge Pin - Max Height152 in
Length w/ Bucket on Ground288 in
Reach at Max Height and Dump50 in
Dump Clearance at Max Lift102 in
Max Lift Height143 in
Fork Tine Length48 in
Length with out Forks on Ground301 in

Transmission

Transmission specifications
Max Speed - Forward24.3 mph
Max Speed - Reverse24.9 mph
Transmission TypePower-Shift Countershaft
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped2.69 yd³
Bucket Capacity - struck2.69 yd³
Breakout Force2,270,571 lb
