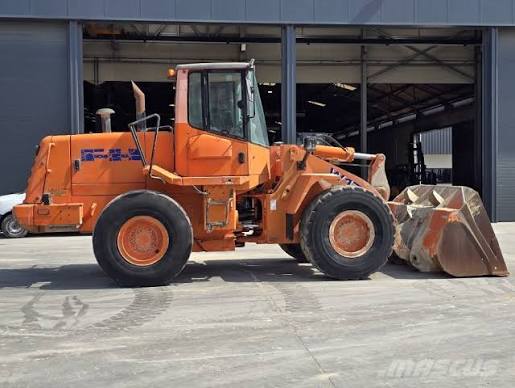

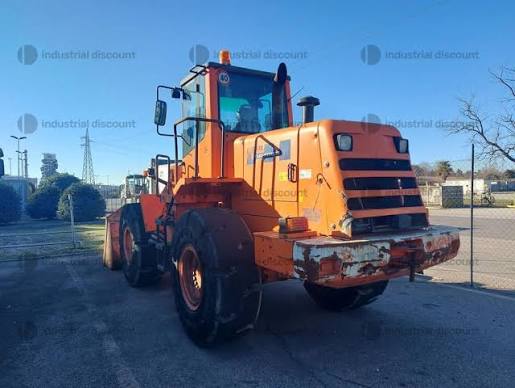

Fiat-Hitachi
W170
- Operating Weight
- 31,041 lb
- Bucket Capacity - heaped
- 3.51 yd³
- Gross Power
- 182.0 hp
- Net Power
- 170.0 hp
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 31,041 lb |
|---|---|
| Fuel Capacity | 58.2 gal |
| Tire Size | 20.5 - 25 GP-2B |
| Hydraulic System Fluid Capacity | 39.7 gal |
| Static Tipping Weight | 24,471 lb |
| Operating Voltage | 24 V |
| Turning Radius | 24 in |
| Engine Oil Fluid Capacity | 6.4 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 7.7 gal |
| Rear Axle/Diff Fluid Capacity | 9.6 gal |
| Cooling System Fluid Capacity | 11.9 gal |
| Transmission Fluid Capacity | 5.3 gal |
Engine
| Engine Model | 6CT 8.3 |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 182.0 hp |
| Net Power | 170.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 69.8 gal/min |
|---|---|
| Raise Time | 5.7 s |
| Lower Time | 3.0 s |
| Dump Time | 1.3 s |
| Relief Valve Setting | 442 psi |
| Pump Type | Sealed system with anticavitation and relief valves |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 121 in |
| Width Over Tires | 95 in |
| Reach at Max Lift and Dump | 48 in |
| Length with Bucket on Ground | 304 in |
| Hinge Pin - Max Height | 154 in |
Transmission
| Max Speed - Forward | 36.0 mph |
|---|---|
| Max Speed - Reverse | 38.5 mph |
| Transmission Type | Power-Shift Countershaft |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.51 yd³ |
|---|---|
| Dump Clearance at Max Raise | 107 in |
| Breakout Force | 3,034,921 lb |
| Bucket Width | 101 in |
