Ford
Fendt
817
Tractor
23 specifications
1 / 5

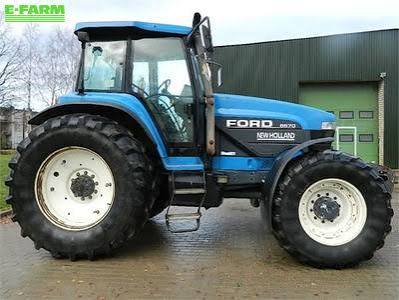

Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 18,199 lb |
|---|---|
| Fuel Capacity | 110.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 10,000 lb |
| Operating Voltage | 12 V |
| Tire Size Front - 2wd / 4wd | 14L-16.1 |
| Hydraulic System Fluid Capacity | 30.9 gal |
Engine
| Displacement | 458 in³ |
|---|---|
| Power Measured @ | 2,100 rpm |
| Gross Power | 170.0 hp |
| Number of Cylinders | 6 |
| Engine Make | Ford |
| PTO Power | 145.0 hp |
| Stroke | 5 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 24.0 gal/min |
|---|---|
| Number of Remote Control Valves | 3 |
| Hydraulic System Type | Closed center load sensing |
| Maximum system pressure | 2,750 psi |
Dimensions
| Wheelbase | 119 in |
|---|---|
| Overall Length | 197 in |
| Overall Width | 97 in |
| Height - Top of ROPS/FOPS | 125 in |
Transmission
| Number of Forward Gears | 16 |
|---|---|
| Transmission Type | Full power shift |
| Number of Reverse Gears | 9 |
Tires & Wheels
| Rear Tires Size | 18.4R42 |
|---|
Production
| Series | 70 Genesis Series |
|---|---|
| Year Manufactured | 1,993 – 2,002 |
