Gehl

1202

Excavator

Operating Weight
25,397 lb
Max Digging Depth
176 in
Max Digging Depth
189 in
Net Power
99.2 hp
All excavators

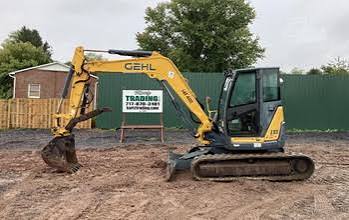

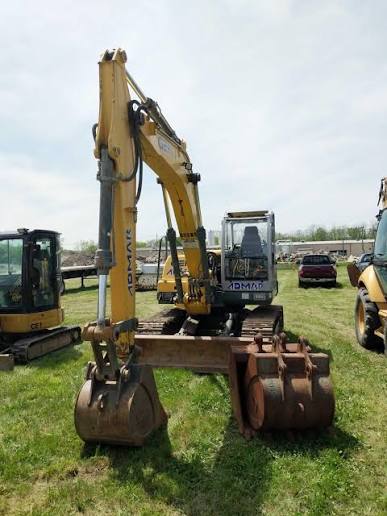

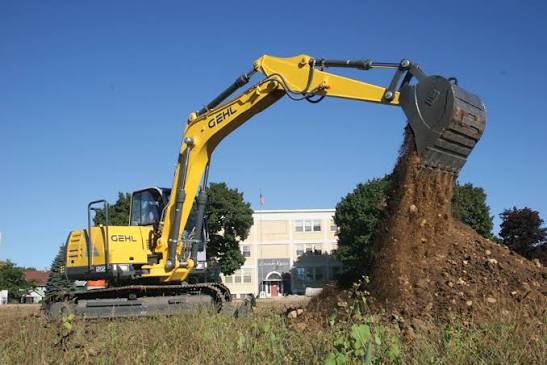

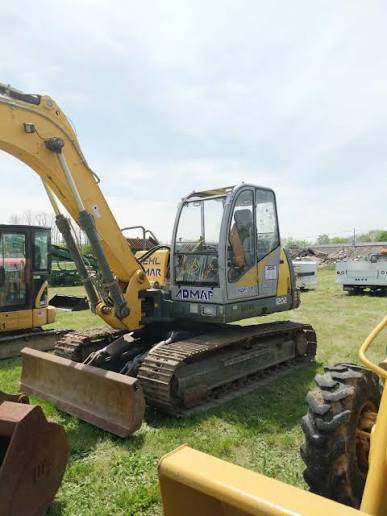

Gehl 1202 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,397 lb
Fuel Capacity34.4 gal
Hydraulic Pump Flow Capacity69.2 gal/min
Hydraulic System Fluid Capacity33.9 gal
Hydraulic System Relief Valve Pressure4,350 psi
Operating Voltage12 V
Alternator Supplied Amperage120 A

Engine

Engine specifications
Engine Modele 4045TF270
Displacement277 in³
Power Measured @2,200 rpm
Net Power99.2 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab110 in
Length of Track on Ground104 in
Tail Swing Radius65 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Number of Track Rollers per Side6
Max Travel Speed3.9 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth176 in
Max Reach Along Ground306 in
Max Loading Height216 in
Max Cutting Height309 in
Shipping Length of Unit280 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth189 in
Max Cutting Height313 in
Max Loading Height233 in
Max Reach Along Ground315 in
