Gehl

153

Mini Excavator

Operating Weight
3,759 lb
Max Digging Depth
86 in
Net Power
23.7 hp
All mini excavators

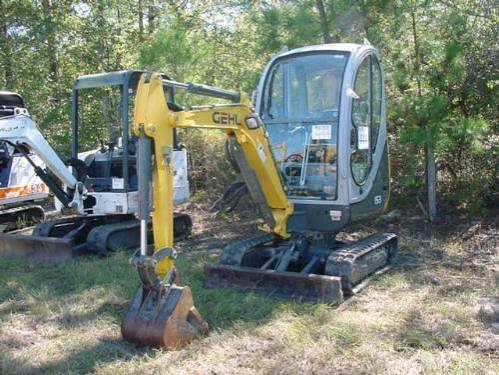

Gehl 153 Mini Excavator
1 / 5
Image 1 of 5
Image: miniexcavatorthumbs.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,759 lb
Fuel Capacity6.4 gal
Hydraulic Pump Flow Capacity18.7 gal/min
Hydraulic System Fluid Capacity5.6 gal
Hydraulic System Relief Valve Pressure2,900 psi
Operating Voltage12 V
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine Model3TNE 74
Displacement61 in³
Power Measured @2,200 rpm
Net Power23.7 hp

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab95 in
Length of Track on Ground49 in
Tail Swing Radius47 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side3
Max Travel Speed3.5 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth86 in
Max Vertical Wall Digging Depth59 in
Max Loading Height101 in
Max Cutting Height138 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth90 in
Max Cutting Height158 in
Max Loading Height115 in
Max Vertical Wall Digging Depth66 in
