Gehl

503Z

Mini Excavator

Operating Weight
10,582 lb
Max Digging Depth
142 in
Net Power
38.0 hp
All mini excavators

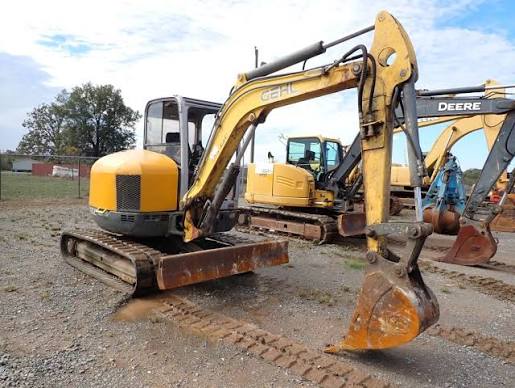

Gehl 503Z Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,582 lb
Fuel Capacity22.0 gal
Hydraulic Pump Flow Capacity43.9 gal/min
Hydraulic System Fluid Capacity21.2 gal
Hydraulic System Relief Valve Pressure3,481 psi
Operating Voltage12 V
Alternator Supplied Amperage88 A

Engine

Engine specifications
Engine ModelYanmar 4TNV88-PNS A TIER II
Displacement134 in³
Power Measured @2,400 rpm
Net Power38.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab102 in
Tail Swing Radius40 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side4
Max Travel Speed2.9 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth142 in
Max Reach Along Ground238 in
Max Vertical Wall Digging Depth104 in
Max Loading Height148 in
Shipping Length of Unit221 in
Max Cutting Height210 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth152 in
Max Cutting Height217 in
Max Loading Height154 in
Max Vertical Wall Digging Depth115 in
Max Reach Along Ground248 in
