Gehl
Tata Hitachi
EX70
Excavator
39 specifications
1 / 5

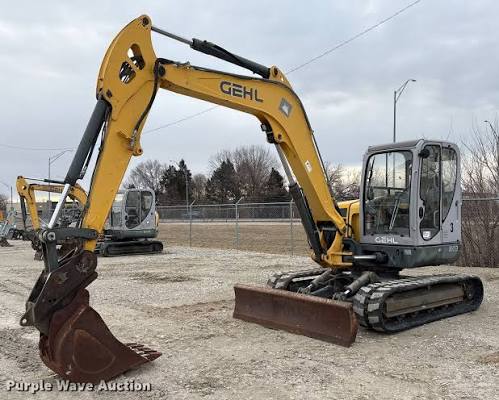

Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 17,548 lb |
|---|---|
| Fuel Capacity | 24.6 gal |
| Hydraulic Pump Flow Capacity | 63.0 gal/min |
| Hydraulic System Fluid Capacity | 26.2 gal |
| Hydraulic System Relief Valve Pressure | 4,351 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 88 A |
Engine
| Engine Model | Yanmar 4TNV98-VNS A TIER II |
|---|---|
| Displacement | 202 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 69.0 hp |
| Net Power | 57.0 hp |
| Number of Cylinders | 4 |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 107 in |
| Tail Swing Radius | 61 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 18 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 169 in |
|---|---|
| Max Reach Along Ground | 283 in |
| Max Loading Height | 191 in |
| Max Vertical Wall Digging Depth | 145 in |
| Max Cutting Height | 276 in |
| Shipping Length of Unit | 259 in |
Bucket
| Reference Bucket Capacity | 0.30 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.50 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 181 in |
|---|---|
| Max Vertical Wall Digging Depth | 157 in |
| Max Cutting Height | 283 in |
| Max Loading Height | 199 in |
| Max Reach Along Ground | 294 in |
