Gehl
ASV
PT-70
Compact Track Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 10,692 lb |
|---|---|
| Max Speed - high range | 6.9 mph |
| Max Speed - low range | 5.0 mph |
| Fuel Capacity | 28.6 gal |
| Hydraulic System Fluid Capacity | 17.0 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 A |
| Engine Oil Capacity | 3.7 gal |
Engine
| Engine Model | 4TNV106T |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 97.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Peak Torque | 191 lb-ft |
Hydraulic System
| Pump Flow | 23.4 gal/min |
|---|---|
| Relief Valve Pressure | 2,988 psi |
Dimensions
| Ground Clearance | 14 in |
|---|---|
| Height - Top of Cab | 88 in |
| Reach at Max Lift and Dump | 42 in |
| Width Over Tracks | 74 in |
| Length with Bucket | 159 in |
| Clearance at Max Lift and Dump | 94 in |
| Turning Radius from Center - inc bucket | 106 in |
| Turning Radius from Center - machine rear | 72 in |
| Length - without Bucket | 122 in |

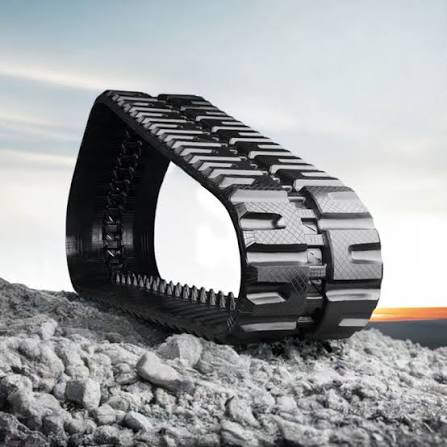

Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Length of Track on Ground | 64 in |
| Width of Track | 18 in |
| Number of Track Rollers per Side | 5 |
Loader
| Tipping Angle | 7,056 ° |
|---|---|
| Operating Load | 3,528 lb |
| Breakout Force | — |
