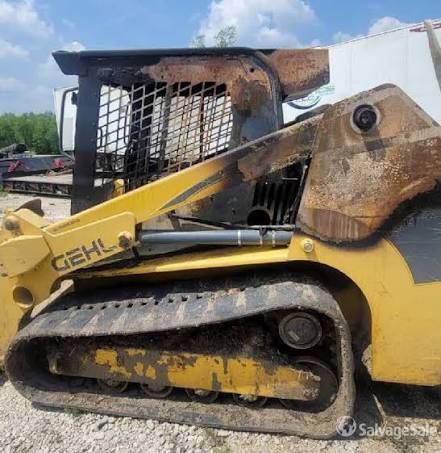

Gehl
ASV
PT-70
Compact Track Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 9,890 lb |
|---|---|
| Max Speed - high range | 7.9 mph |
| Max Speed - low range | 5.5 mph |
| Fuel Capacity | 24.4 gal |
| Hydraulic System Fluid Capacity | 13.8 gal |
| Cooling System Fluid Capacity | 3.9 gal |
| Operating Voltage | 12 V |
Engine
| Engine Model | 4TNV98-XNMS |
|---|---|
| Displacement | 203 in³ |
| Power Measured @ | 2,500 rpm |
| Net Power | 70.7 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Peak Torque | 206 lb-ft |
Hydraulic System
| Pump Flow | 21.8 gal/min |
|---|
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 84 in |
| Reach at Max Lift and Dump | 15 in |
| Width Over Tracks | 70 in |
| Length with Bucket | 152 in |
| Clearance at Max Lift and Dump | 96 in |
| Turning Radius from Center - inc bucket | 98 in |
| Turning Radius from Center - machine rear | 65 in |
| Length - without Bucket | 115 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Length of Track on Ground | 59 in |
| Width of Track | 18 in |
| Number of Track Rollers per Side | 4 |
| Track Gauge | 53 in |
Loader
| Tipping Angle | 6,000 ° |
|---|---|
| Operating Load | 2,100 lb |
| Bucket Width | 74 in |
